From CA to NH on an open trailer:

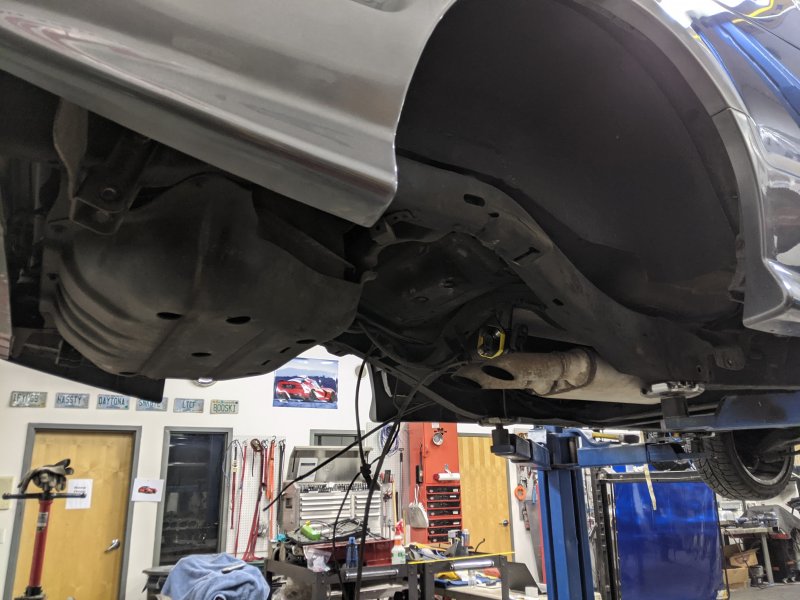

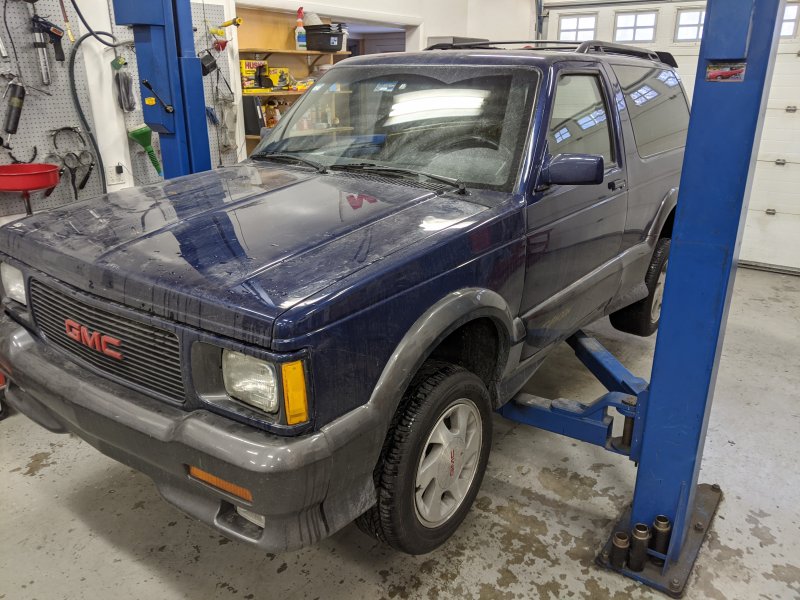

Body disassembly and repairs:

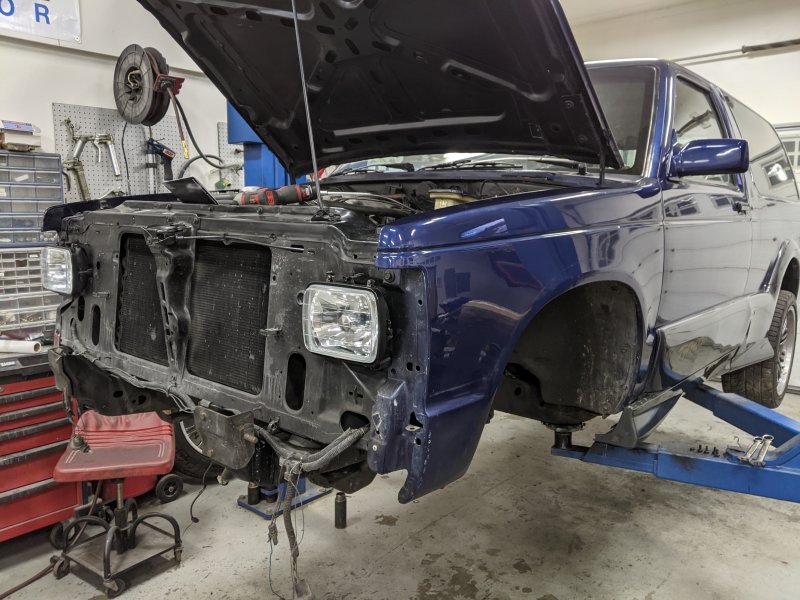

New H4 housings and HID bulbs ^^^

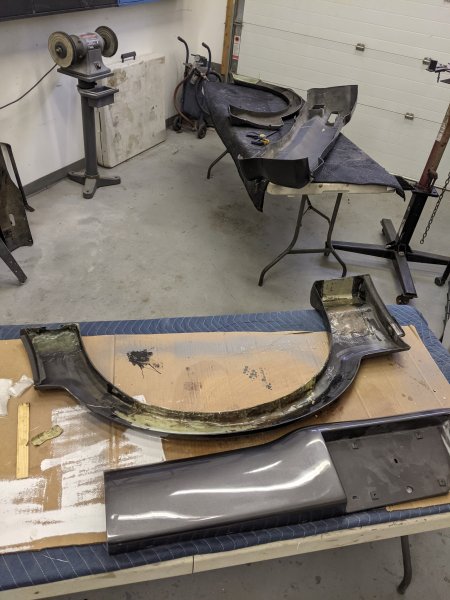

Cladding repairs ^^^

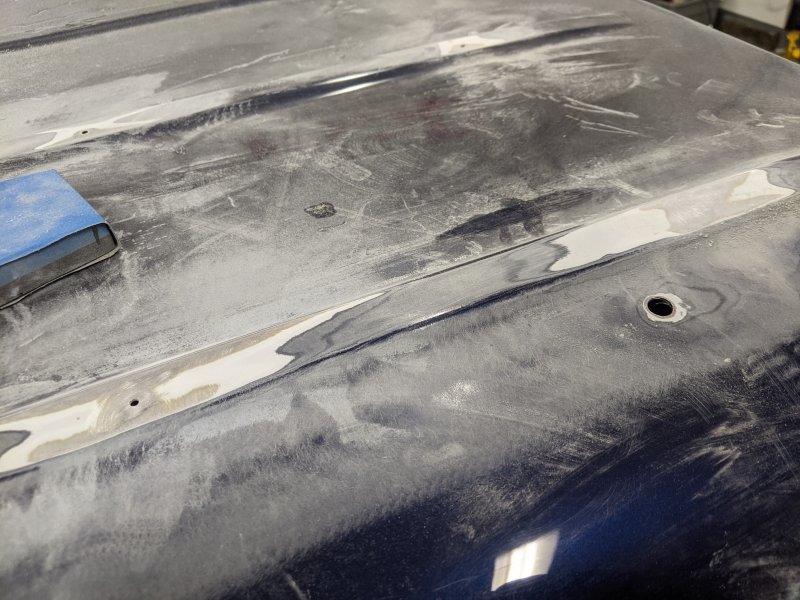

Fixing screw holes and spinning threaded nuts for the roof rack ^^^
Found out the truck used to be red ^^^

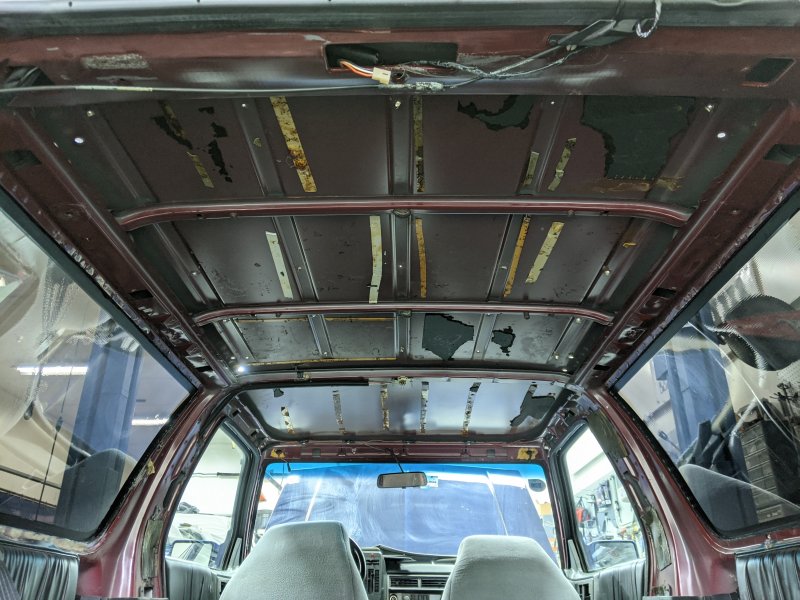

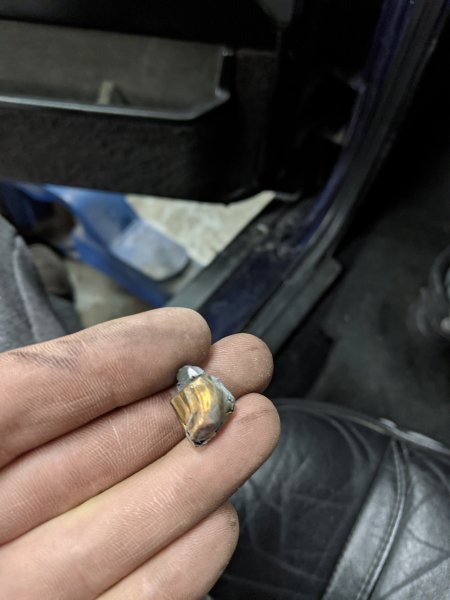

Found something in the headliner ^^^

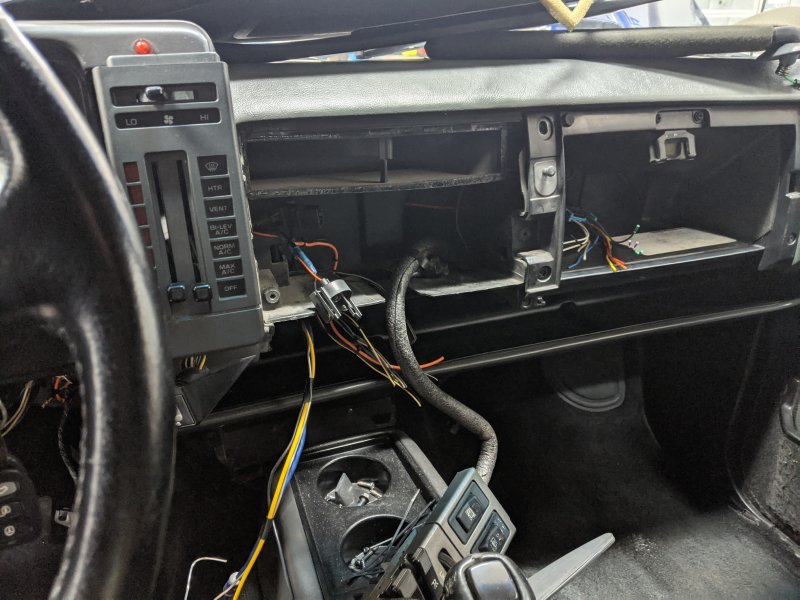

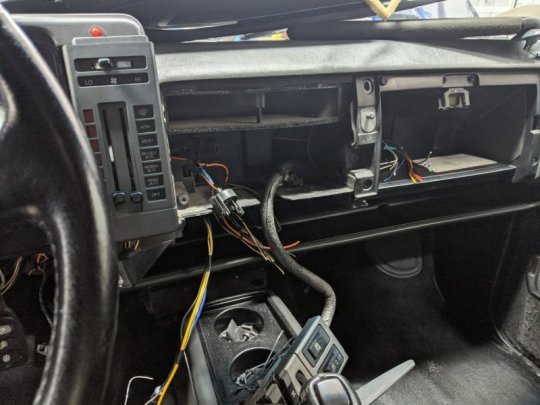

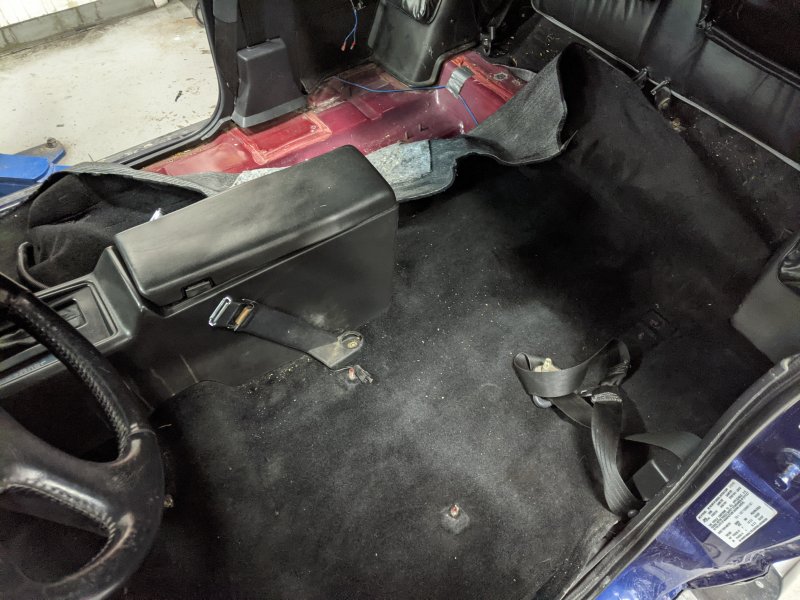

Interior deconstruction and start of wiring:

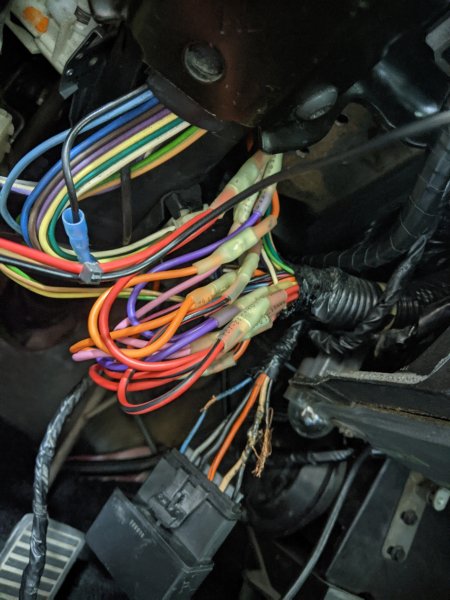

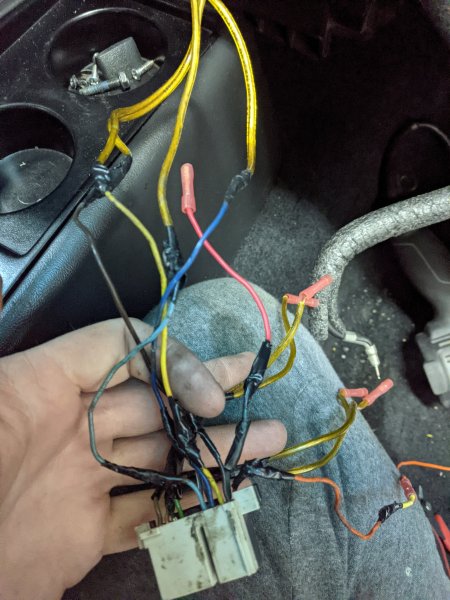

Some improper wiring ^^^

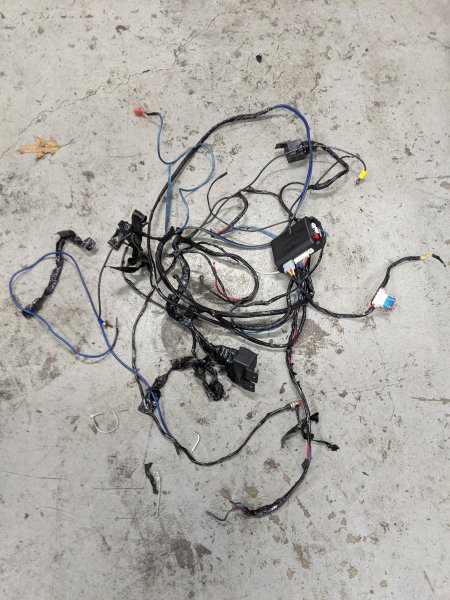

Removed remote start and alarm ^^^
Proper wiring ^^^
What the heck happened here? ^^^

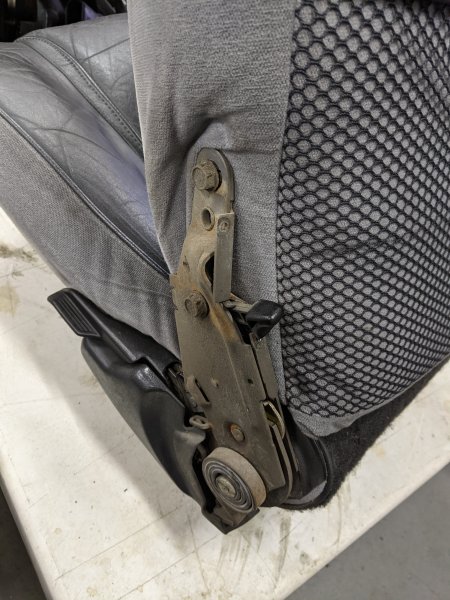

Had to cut in half, bend, re-magnetize, and machine bushing ^^^

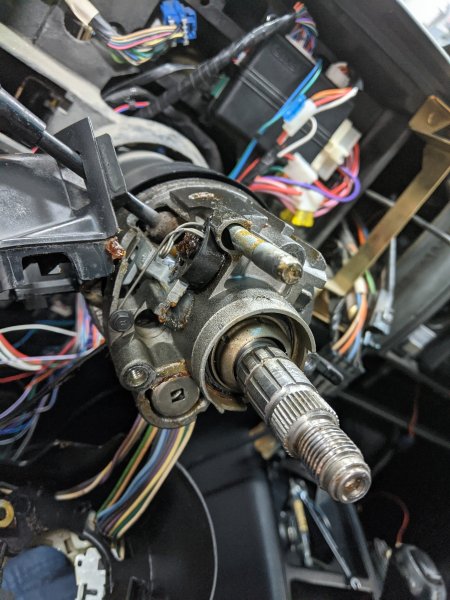

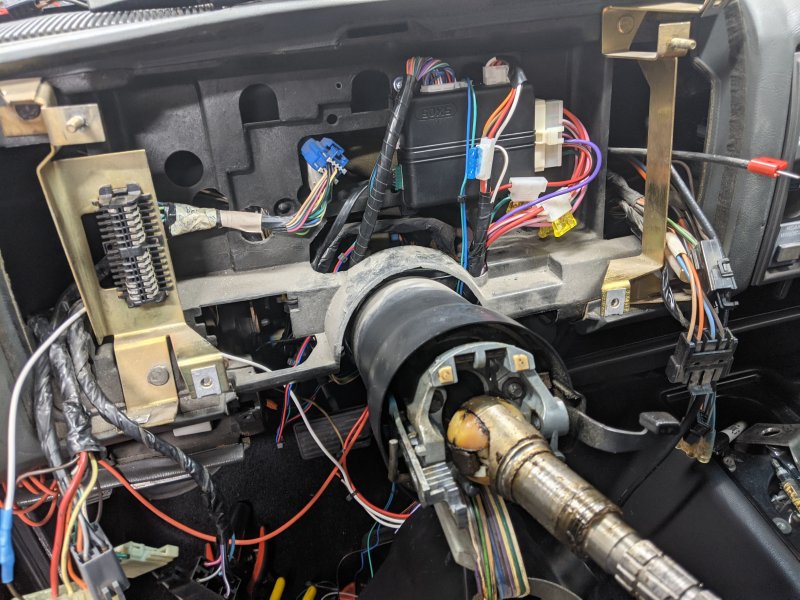

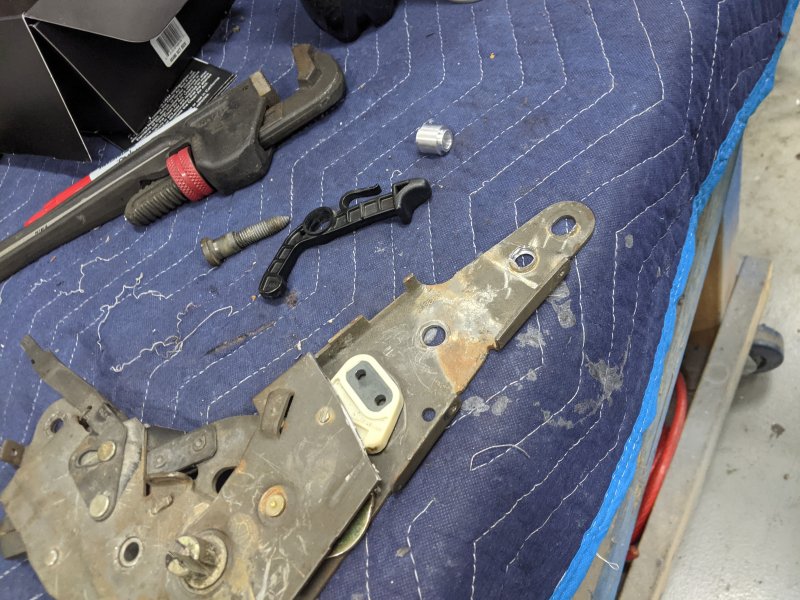

One part of fixing loose steering wheel ^^^

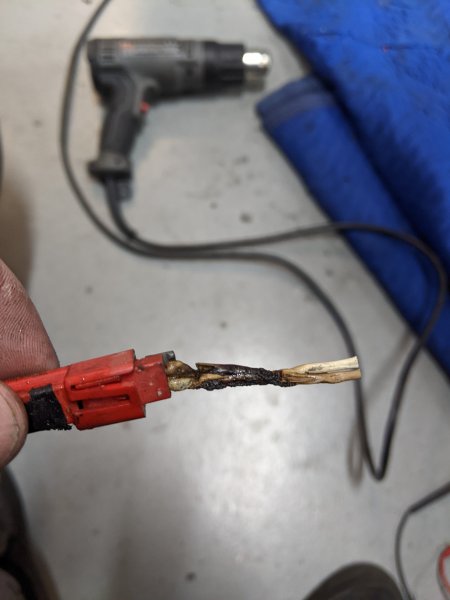

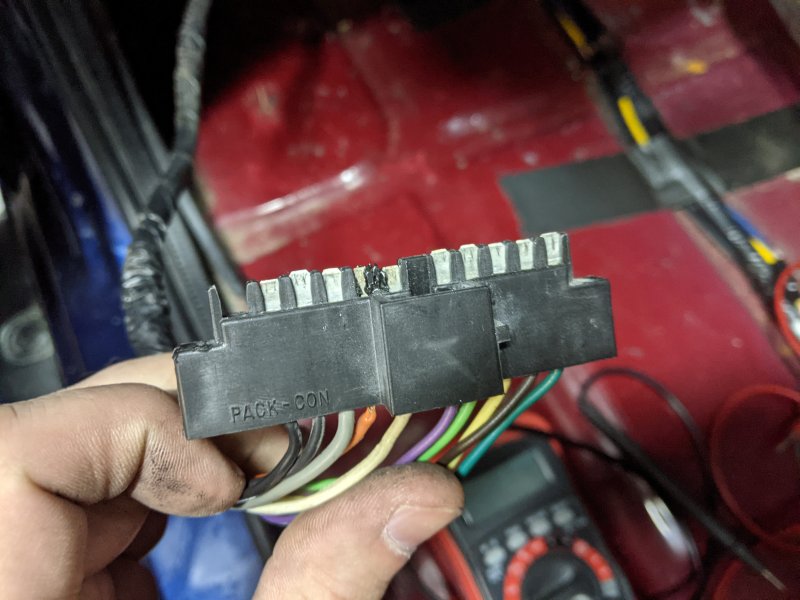

Found 2 shorts throughout the car ^^^

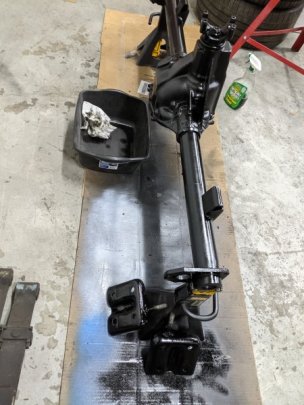

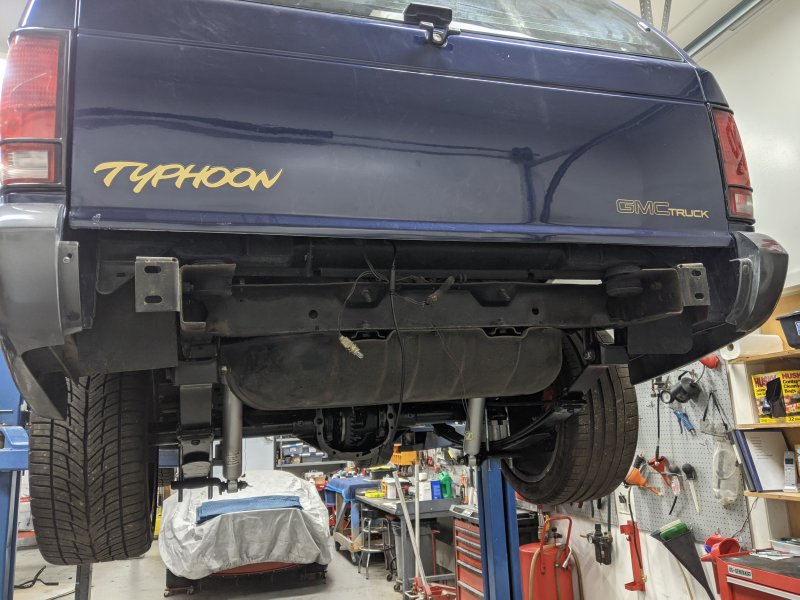

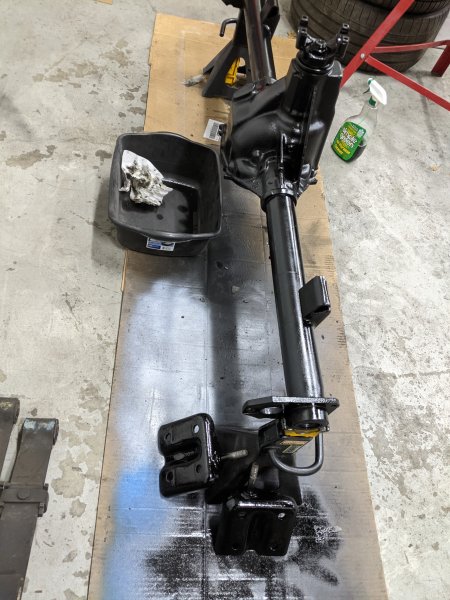

Rear suspension removal, rebuild and upgrades:

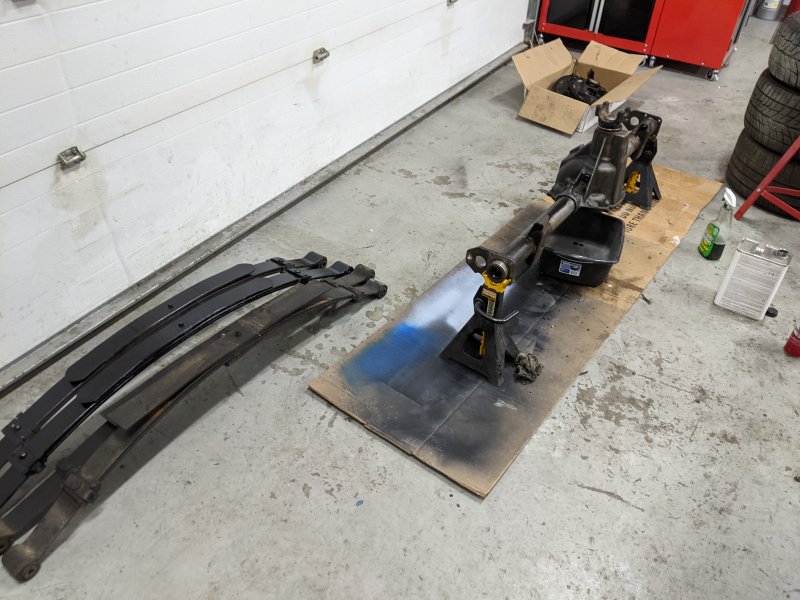

New leaf springs because old ones were unequal, added ES bushings ^^^
Cutting and drilling 10 bolt flange to adopt late model brakes ^^^

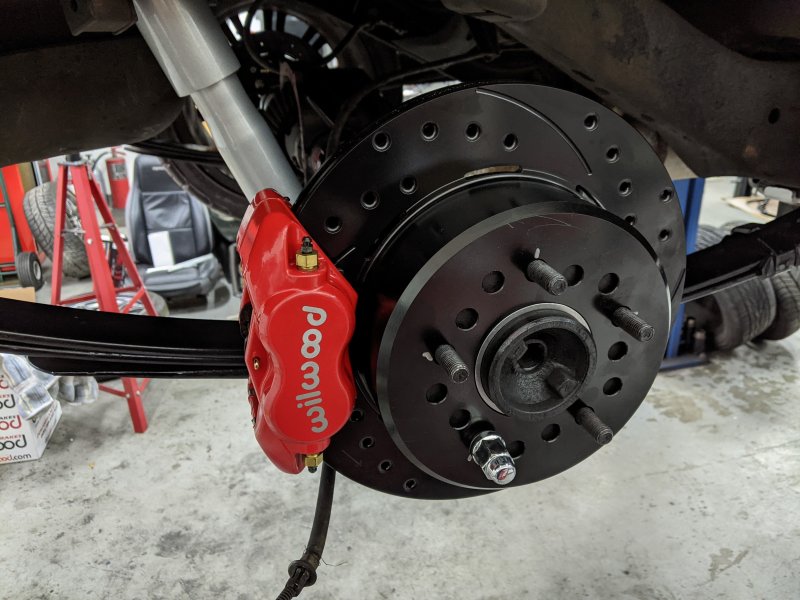

Wilwood 12″ 4-Piston brakes ^^^

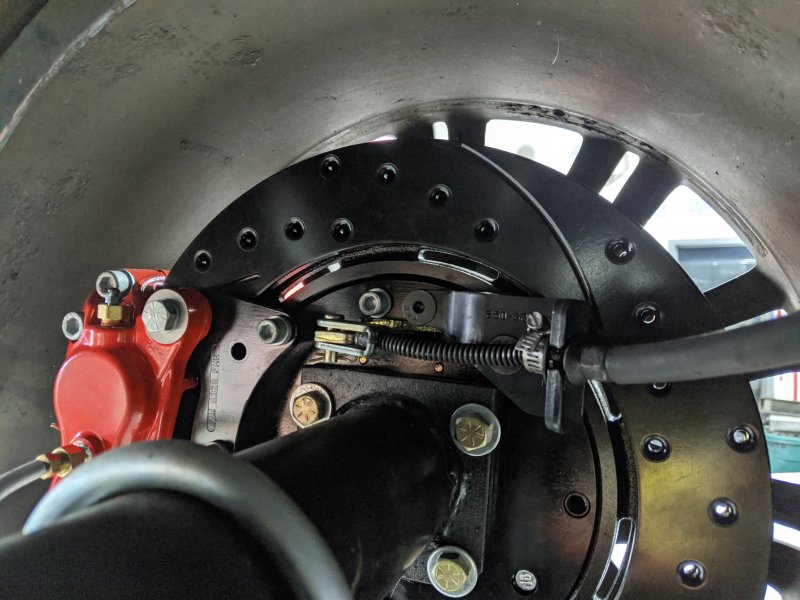

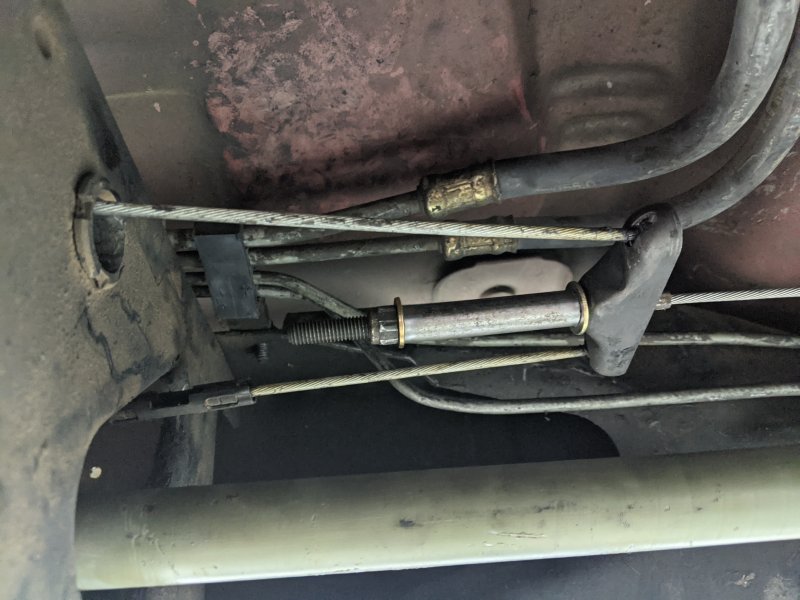

Modifying parking brake cables to work with Wilwood brakes ^^^

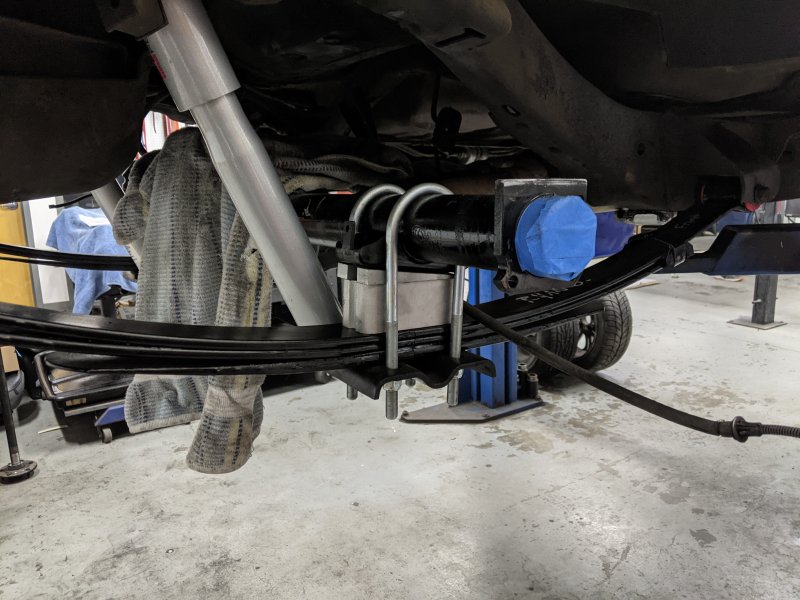

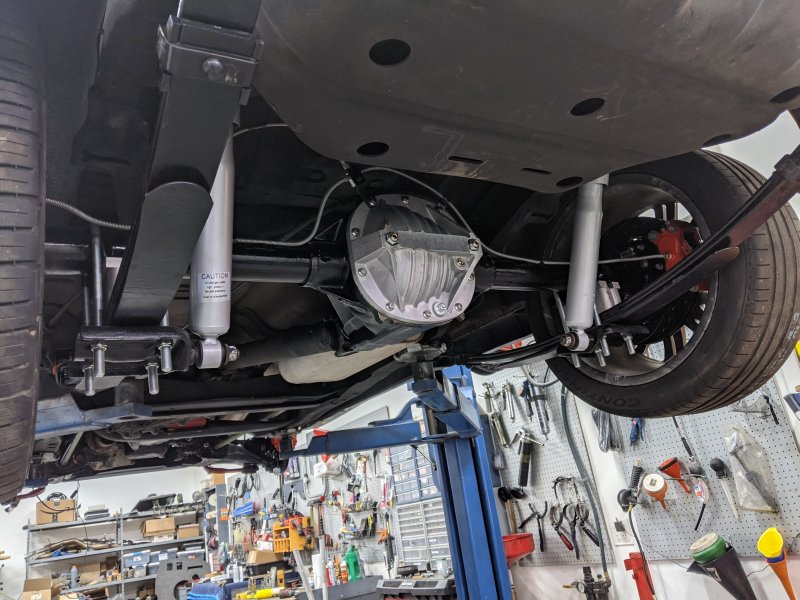

Belltech 2-inch lowering kit, billet differential cover, new brake lines ^^^

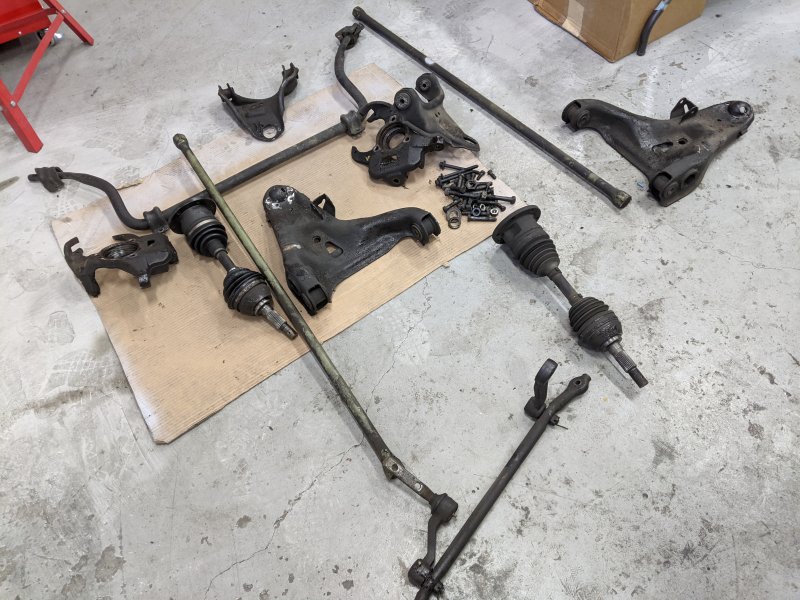

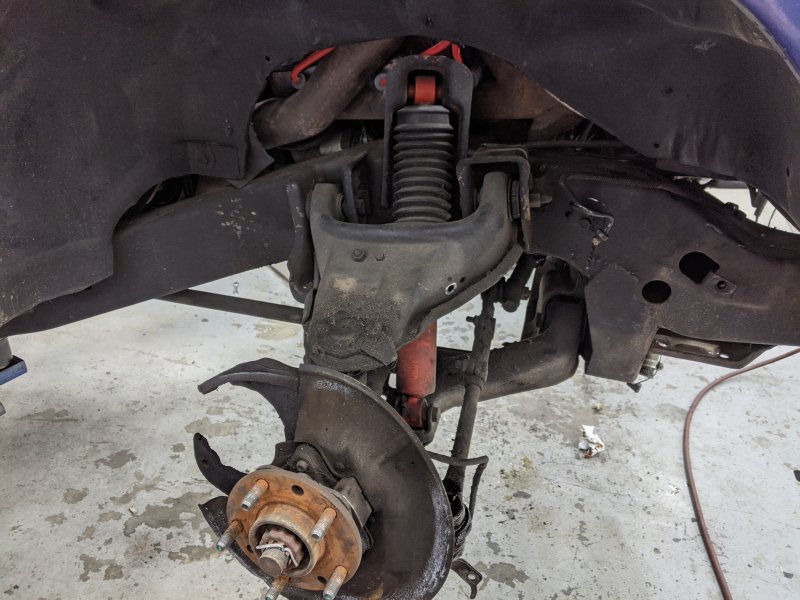

Front suspension removal, rebuild and upgrades:

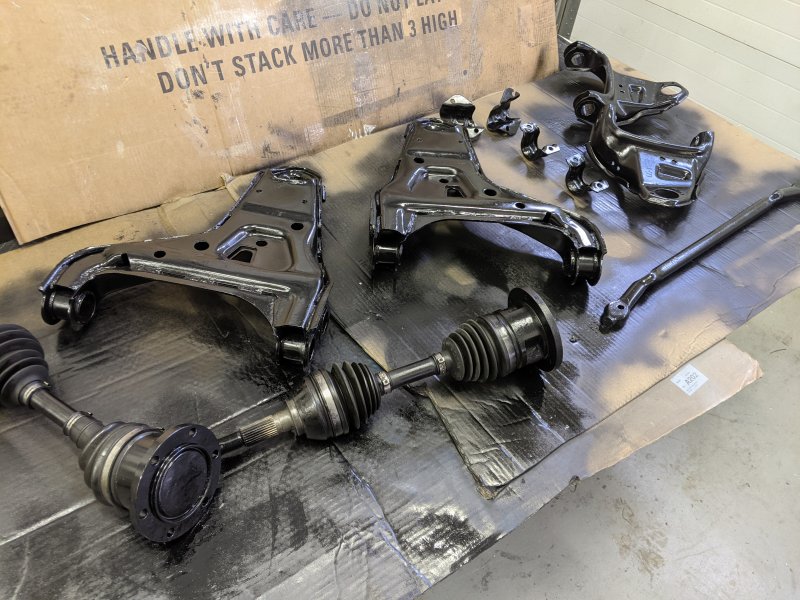

Parts to be reused ^^^

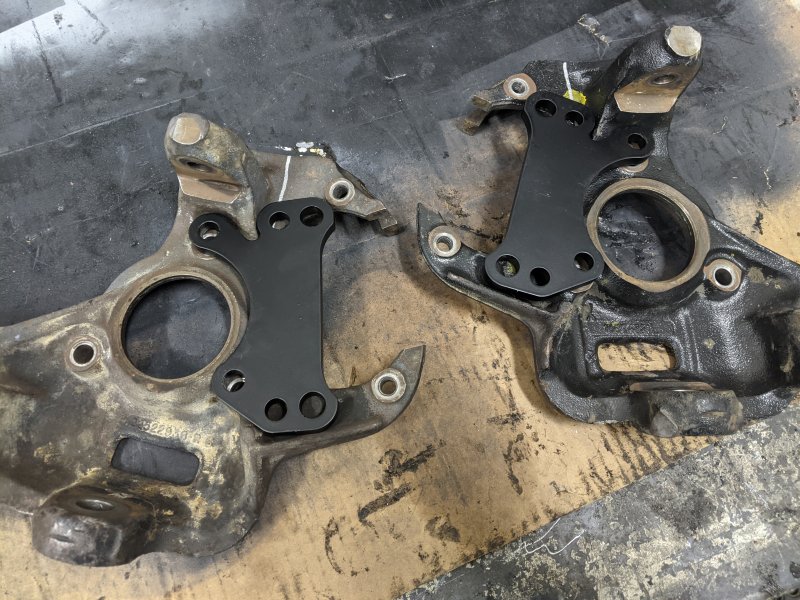

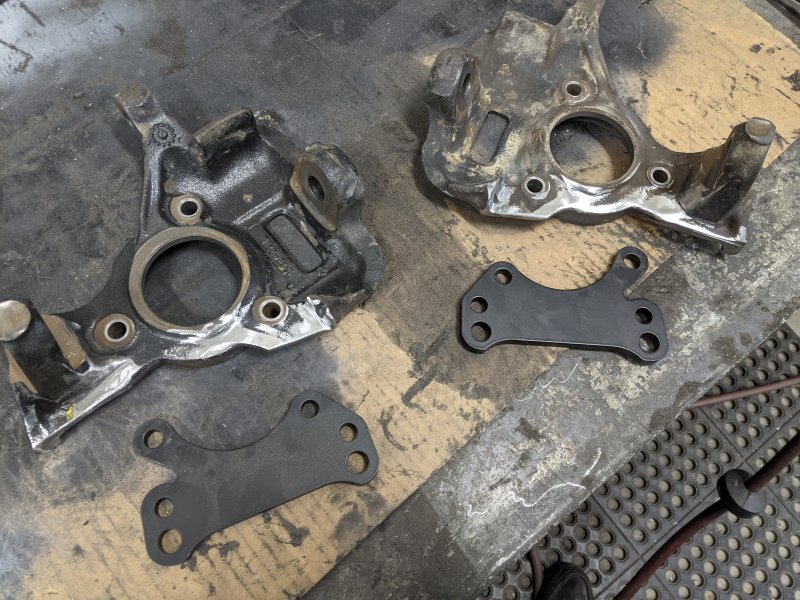

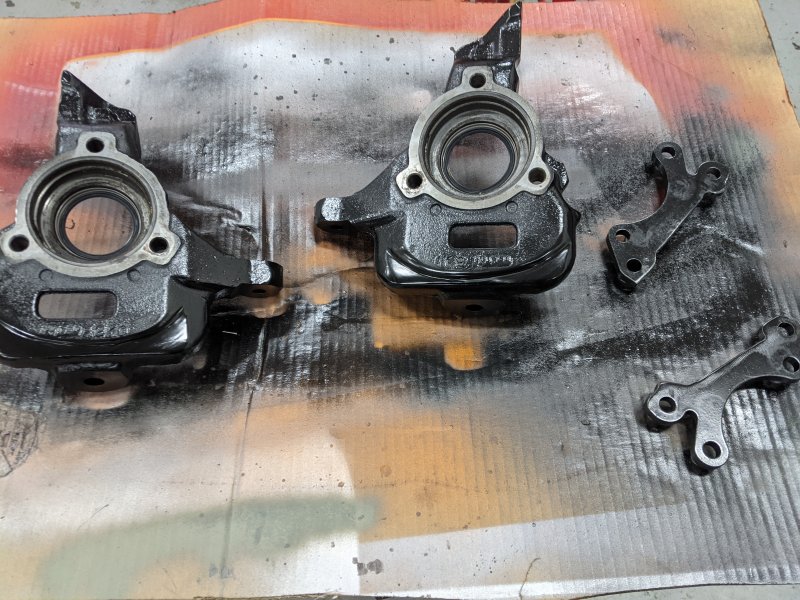

Cutting spindles and brackets to fit Camaro brakes ^^^

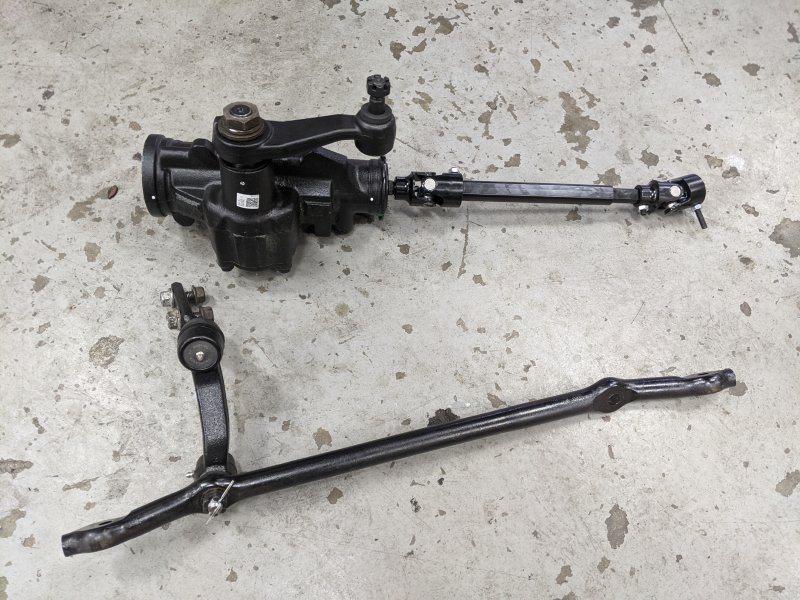

All new steering components to tighten up steering ^^^

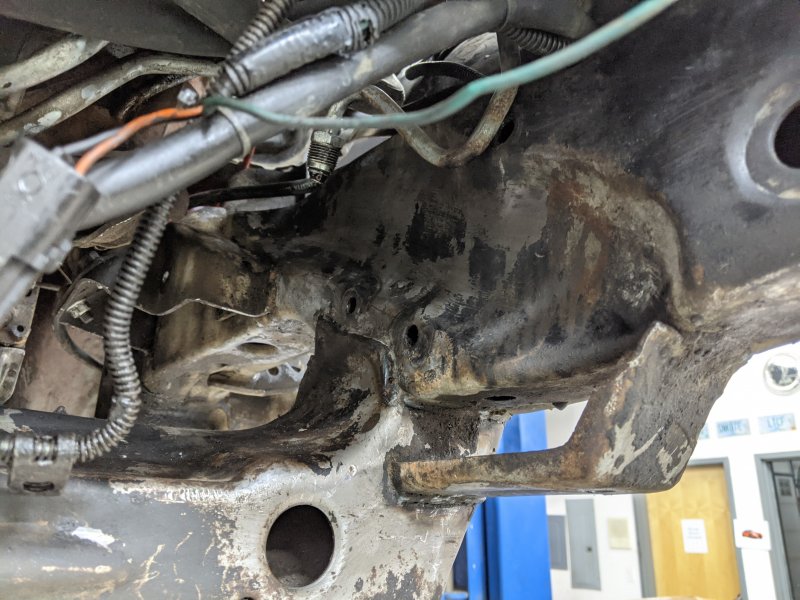

Frame before ^^^

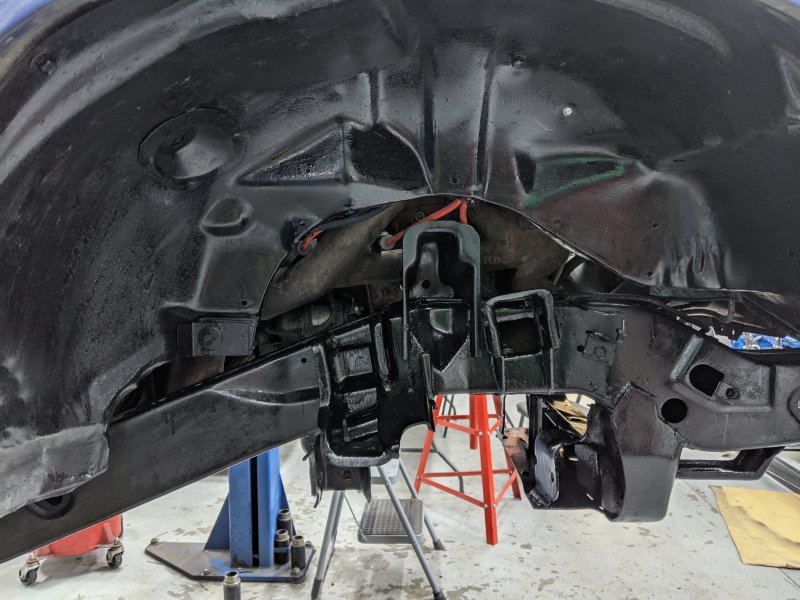

Frame after ^^^

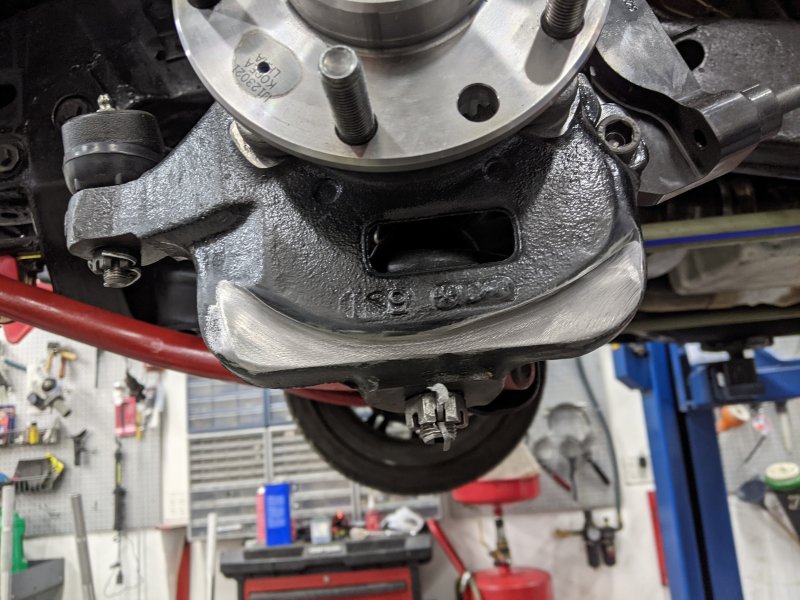

Had to grind spindle to get brakes to fit ^^^

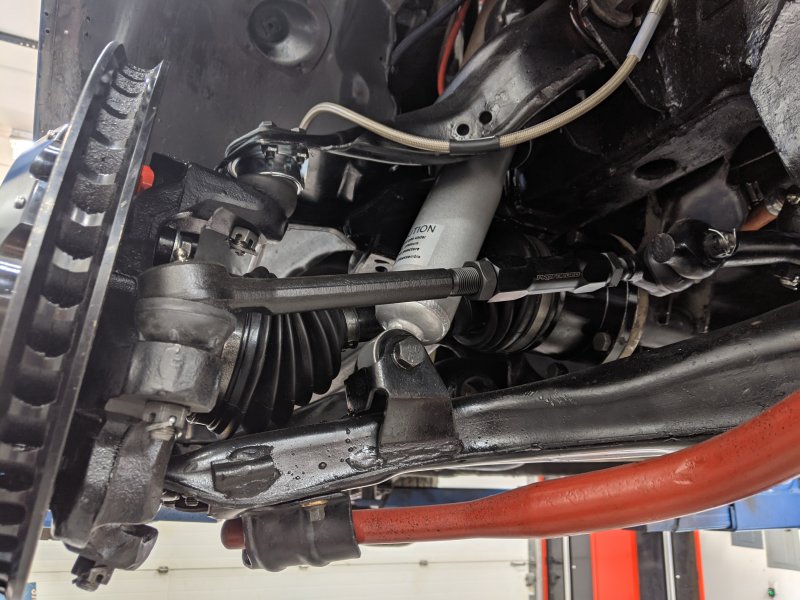

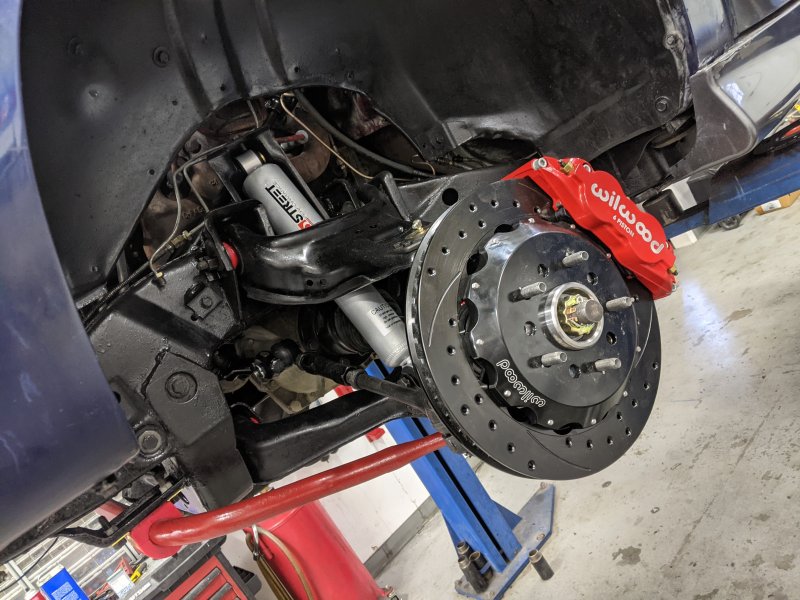

Wilwood 14″ 6-Piston brakes ^^^
Belltech 2-inch lowering kit, ES bushings, new brake lines ^^^

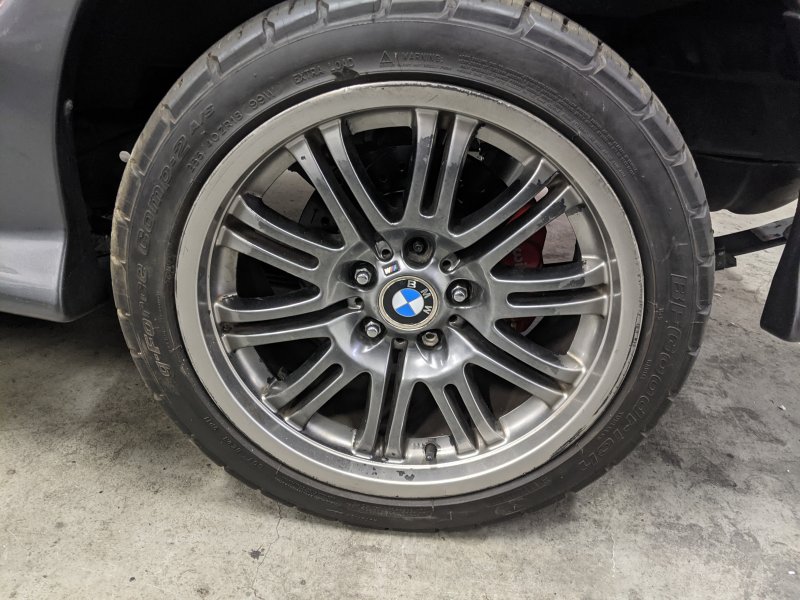

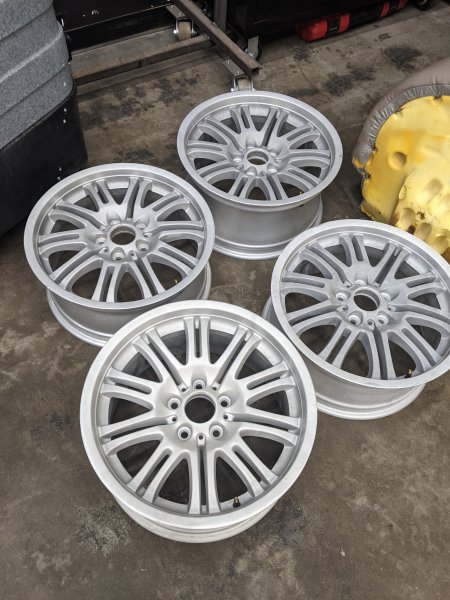

New (used) BMW M3 wheels:

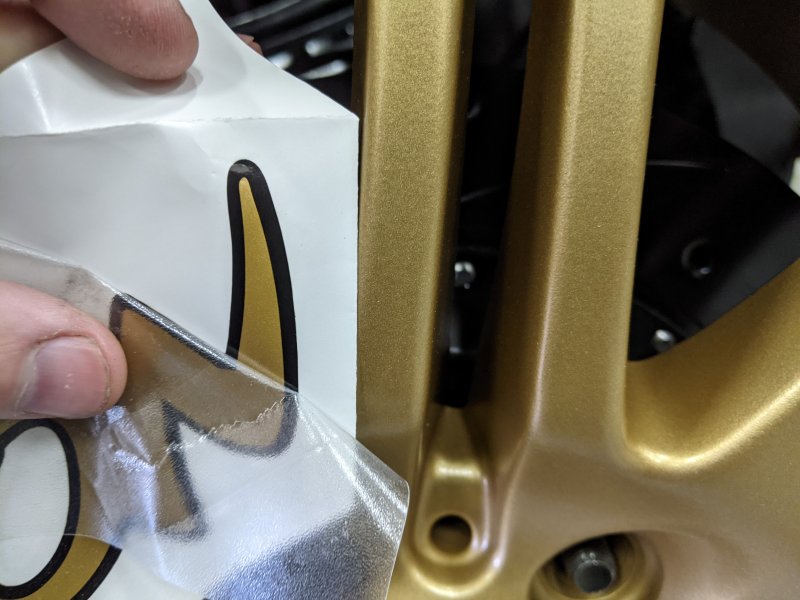

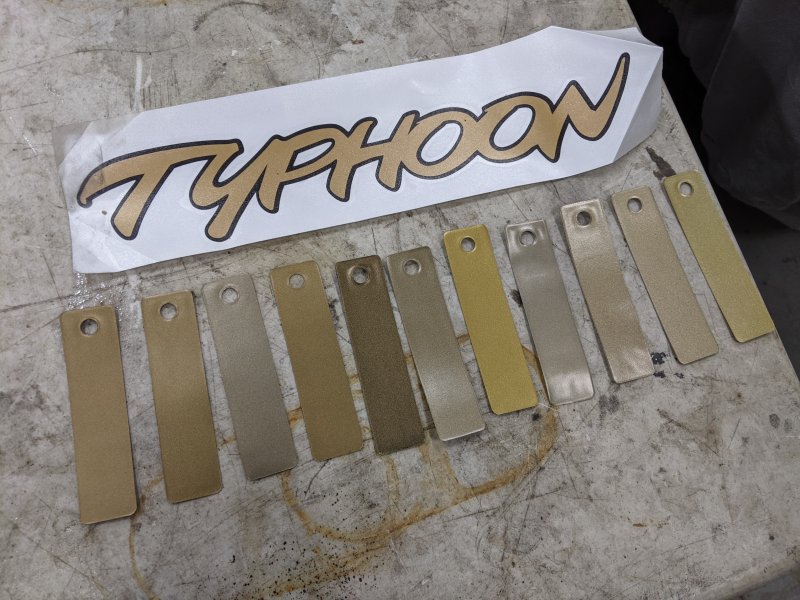

Color options for wheels ^^^

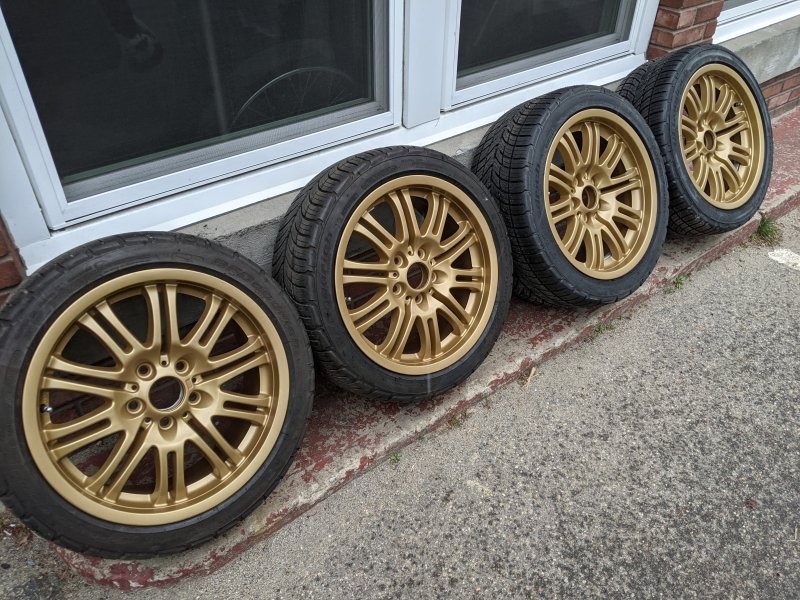

Nailed it ^^^

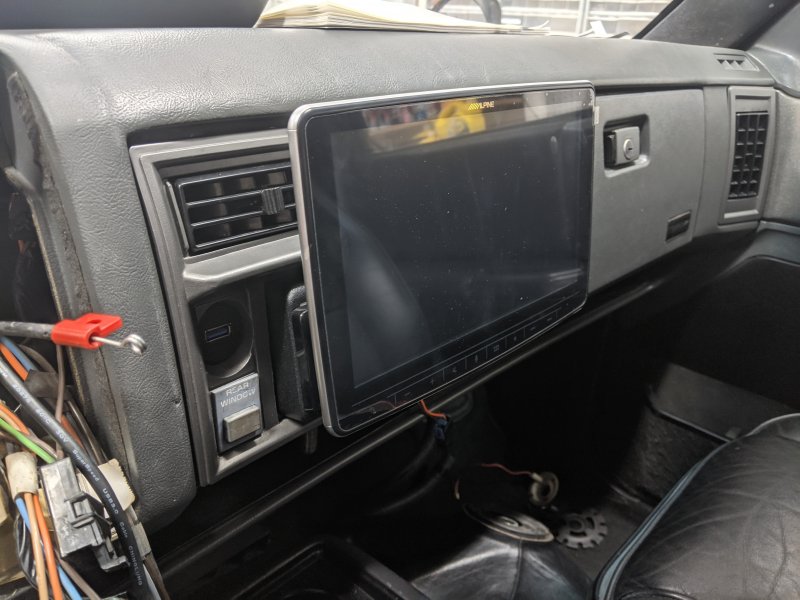

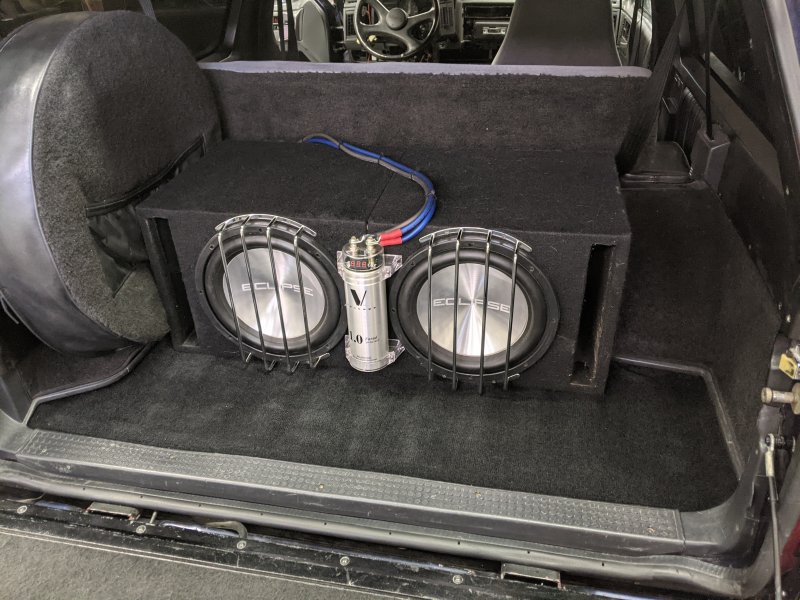

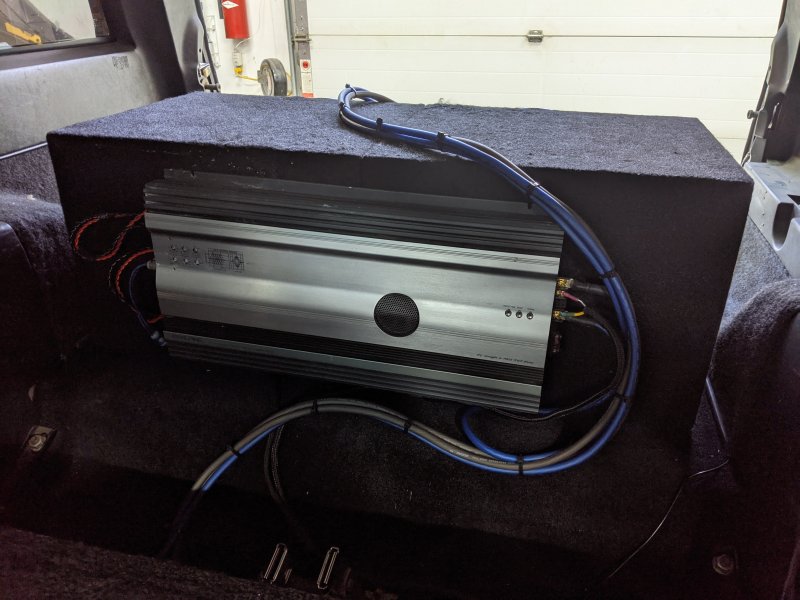

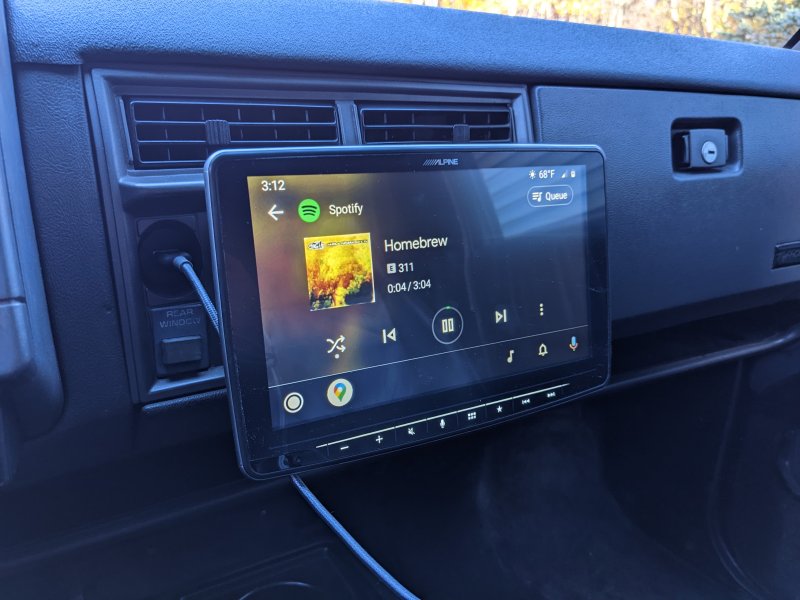

Stereo install:
New alarm and remote start unit ^^^
Engine Bay Work:

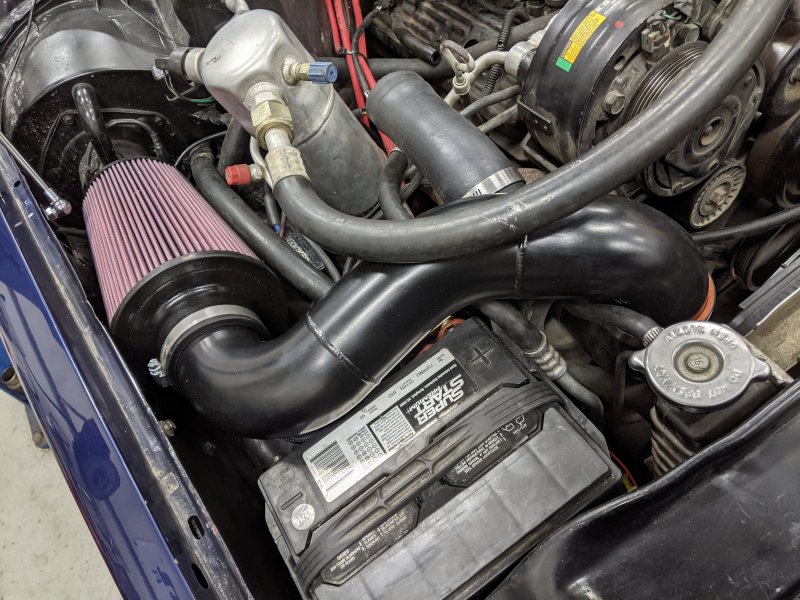

RPM cold air intake ^^^

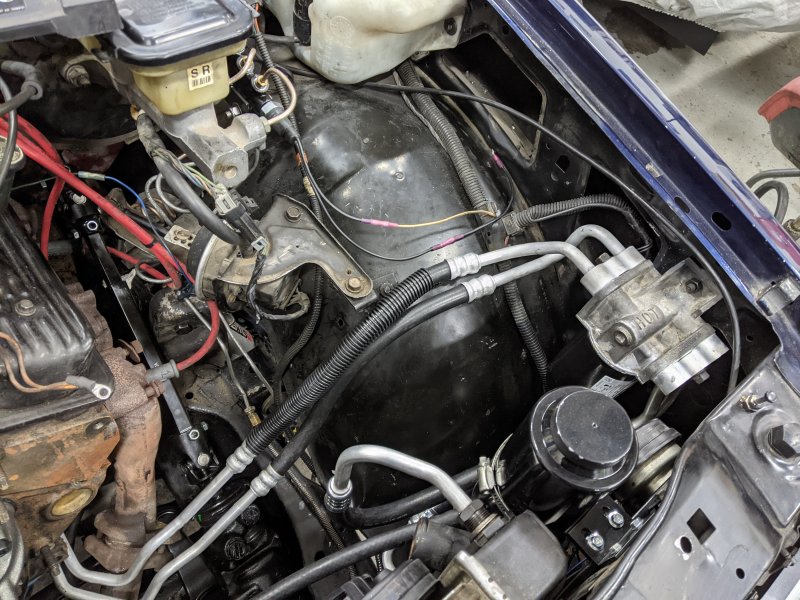

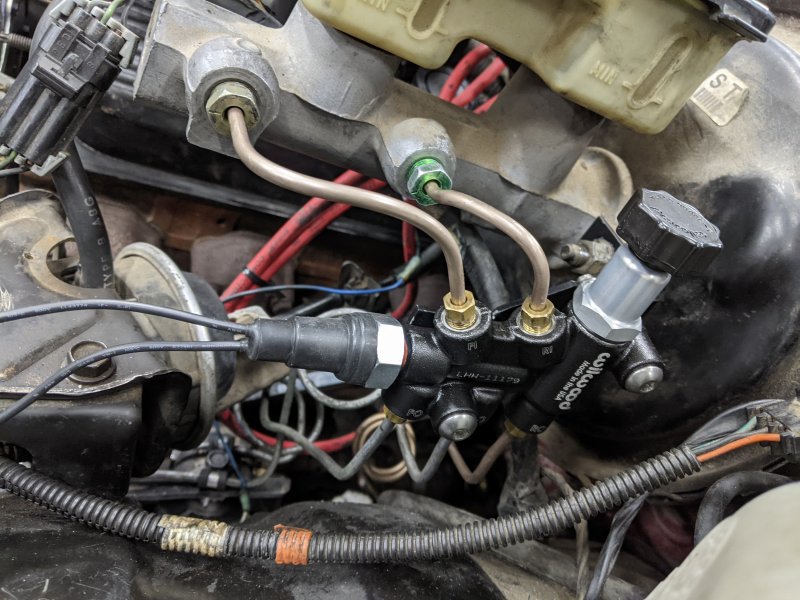

ABS delete and proportional valve install ^^^

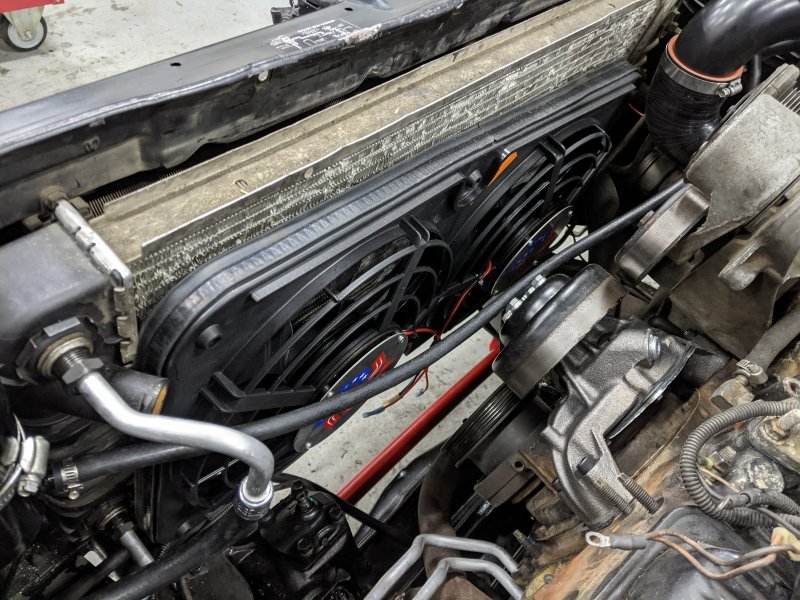

Electric fan install ^^^

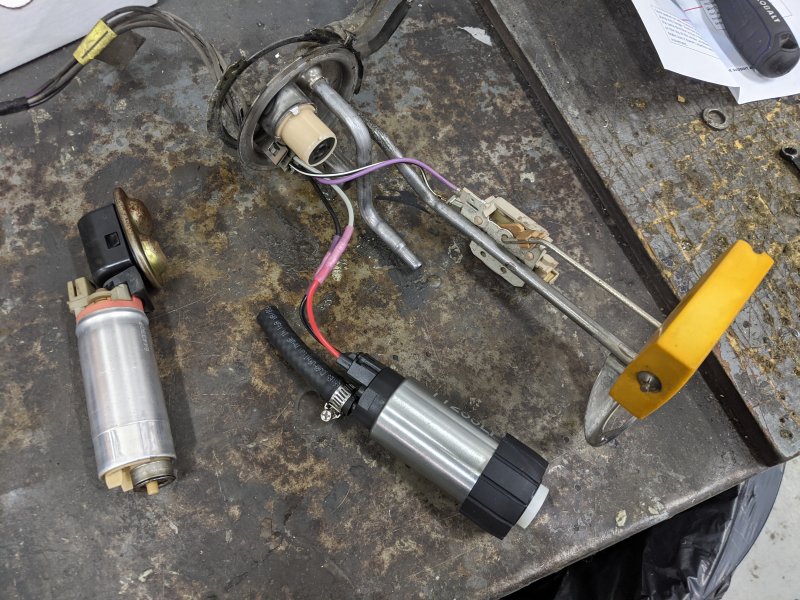

Fuel System Upgrades:
Custom Gauge Cluster:

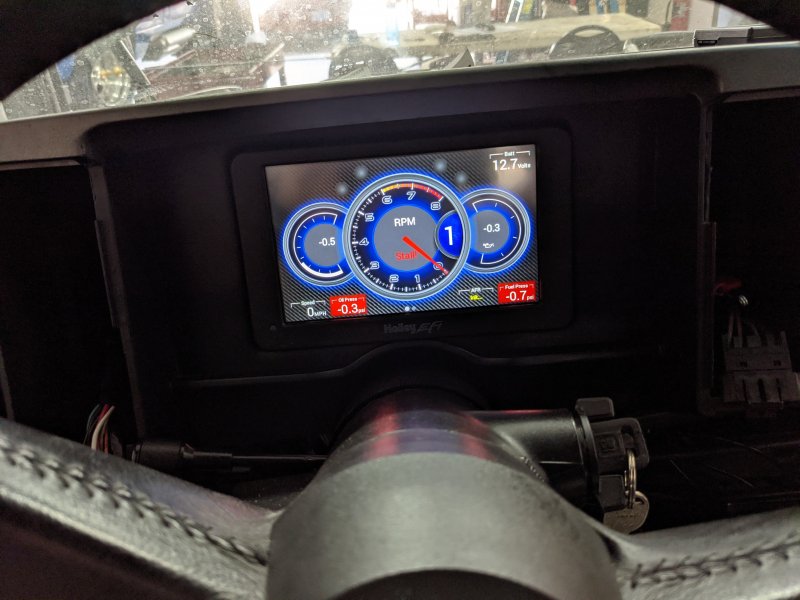

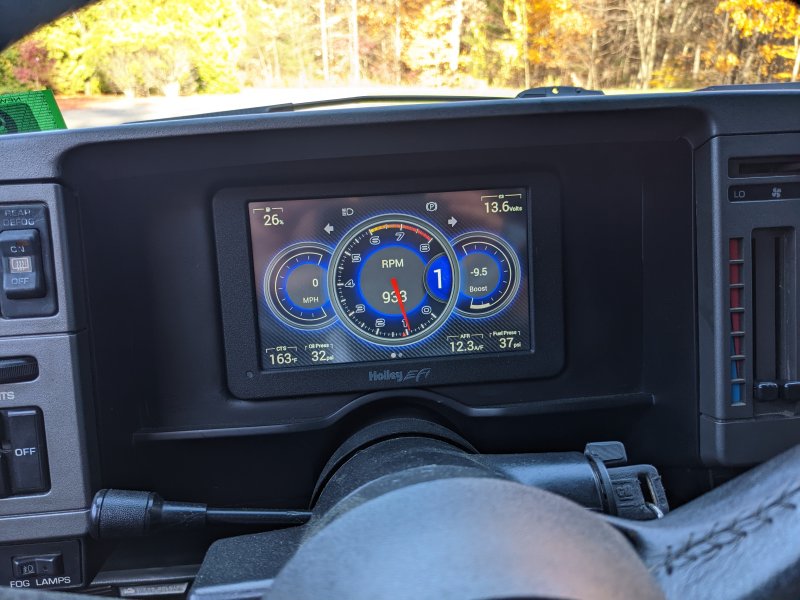

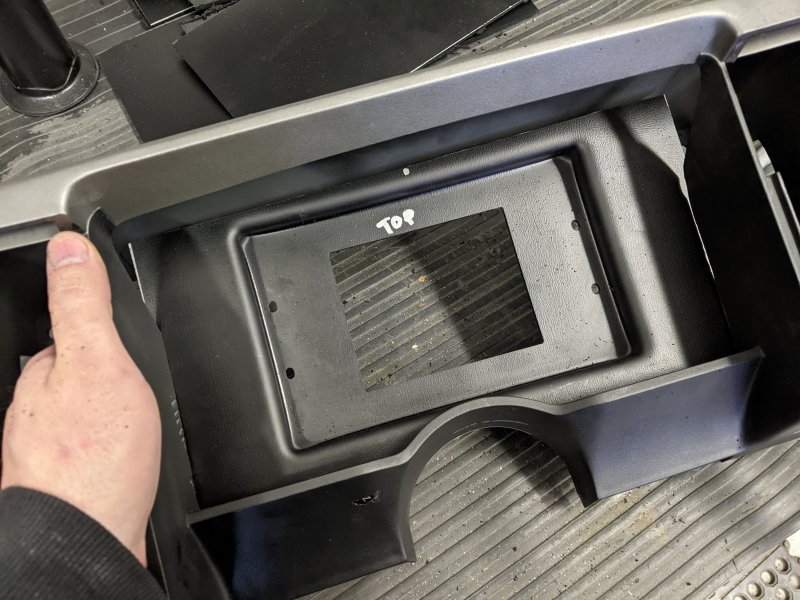

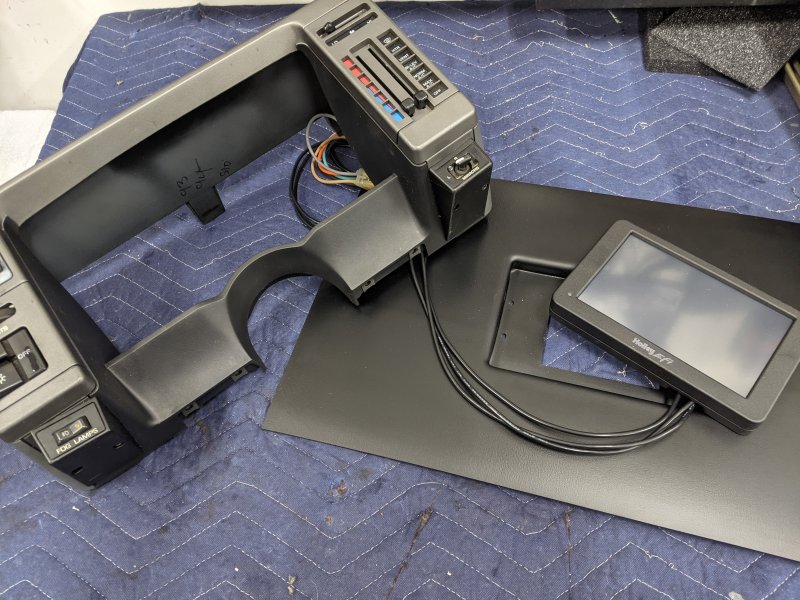

Standard Jimmy Dash Bezel with Holley Digital Dash^^^

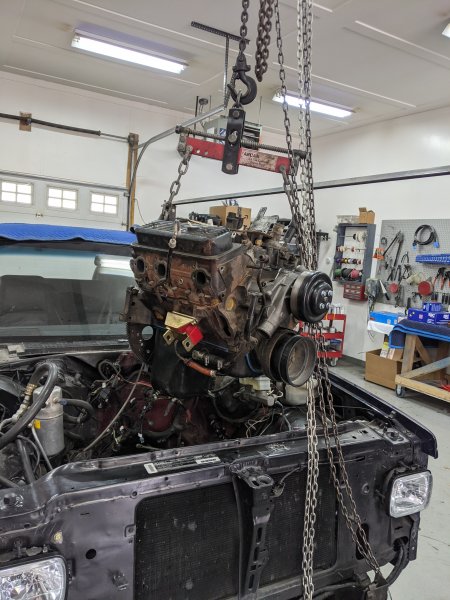

Engine Removal and Cleaning up the Engine Compartment:

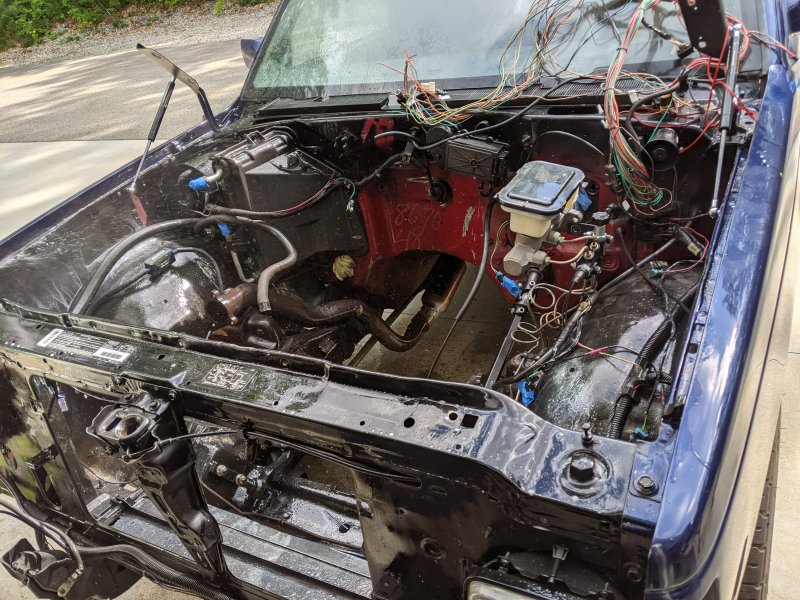

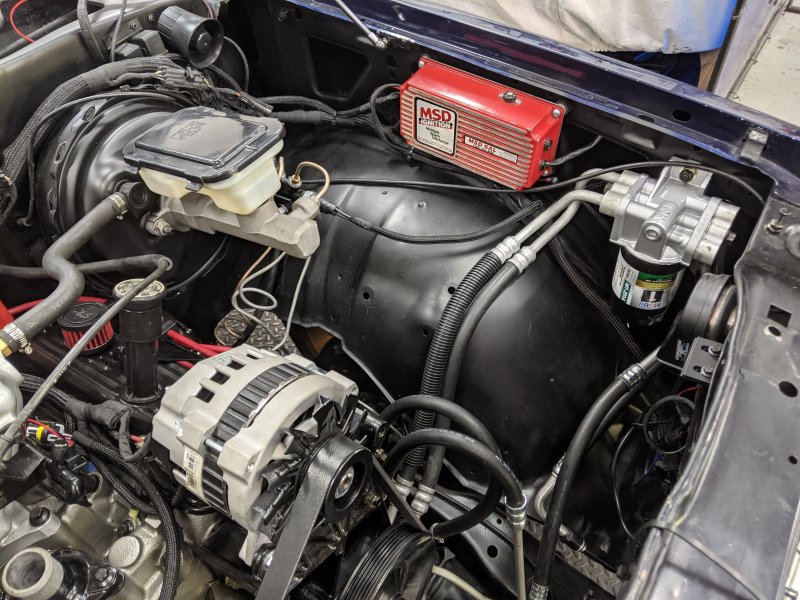

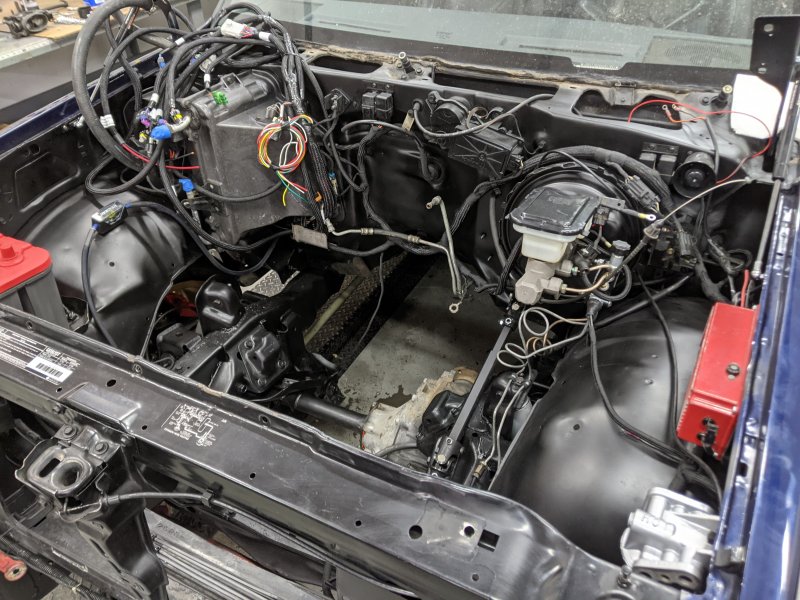

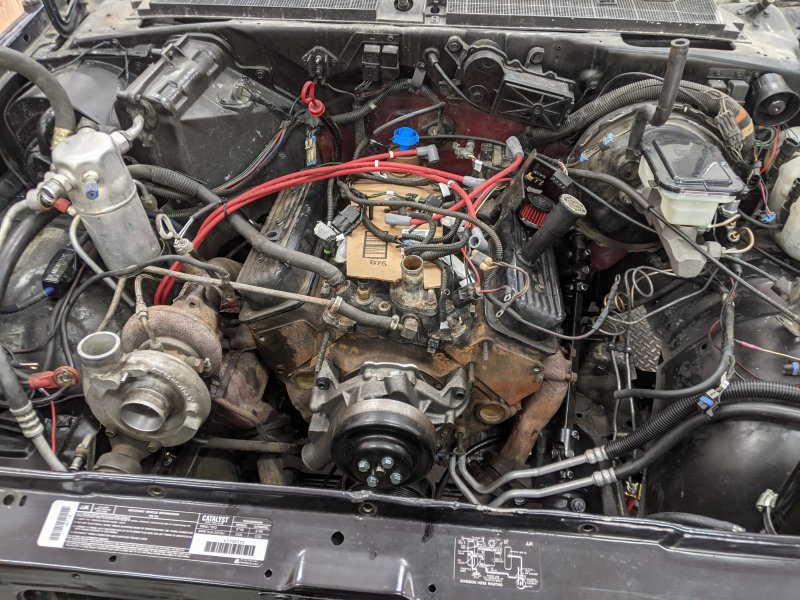

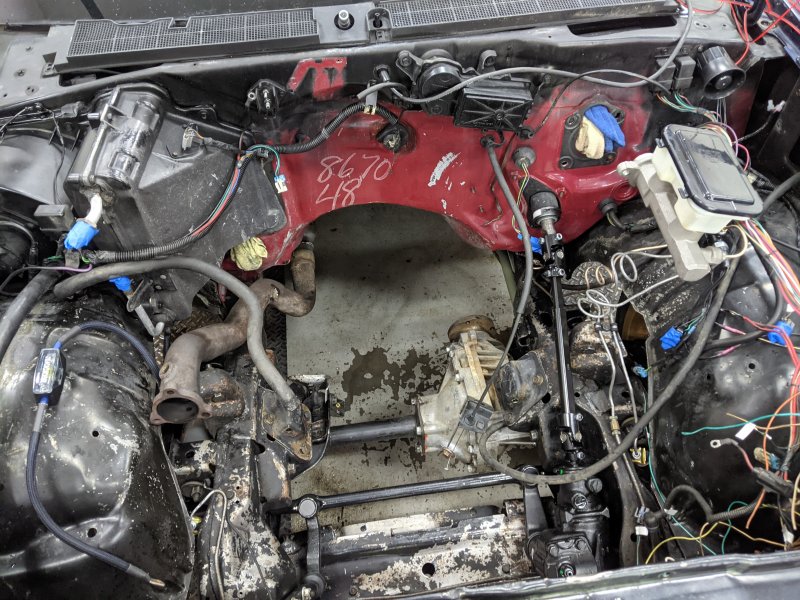

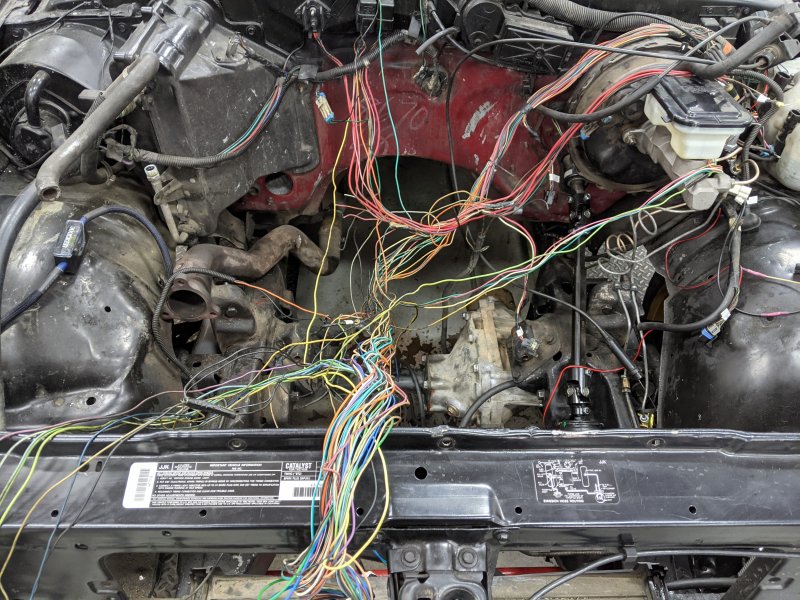

Engine compartment cleaning, and wiring^^^
Engine refresh:

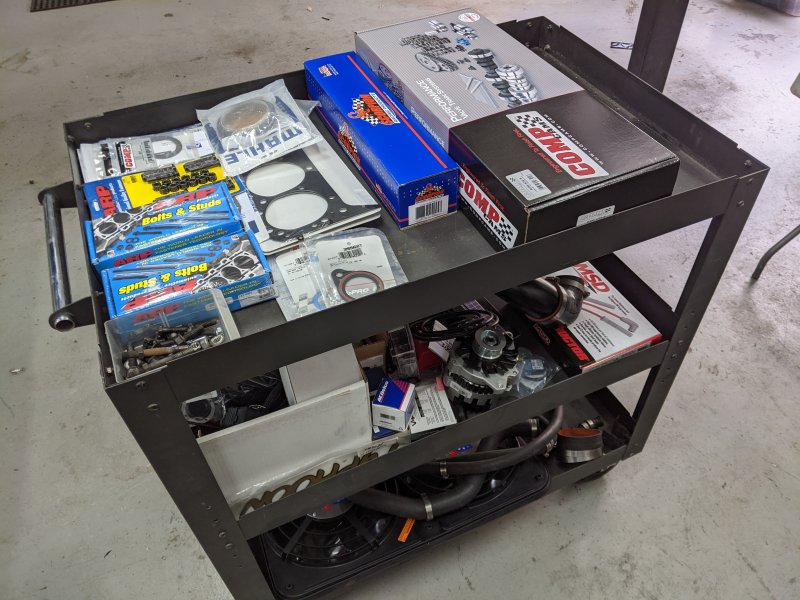

New cam and valvetrain plus gaskets and studs^^^

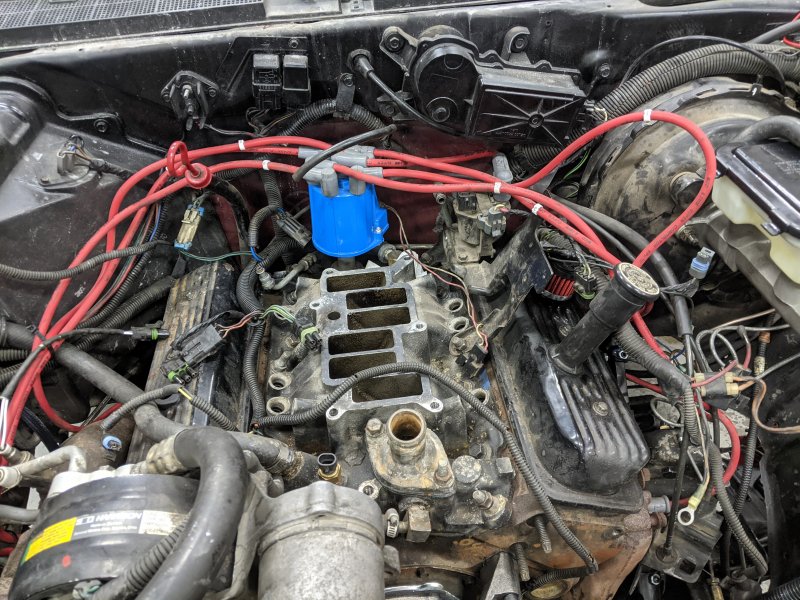

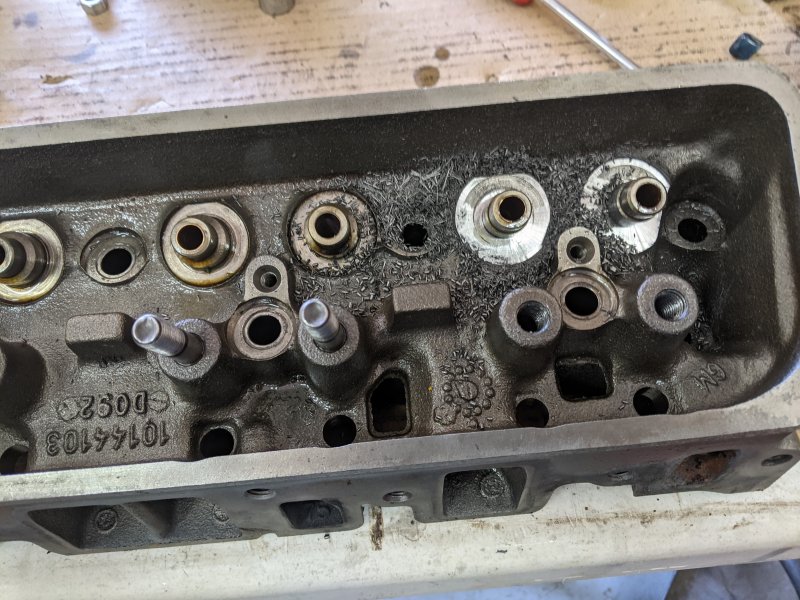

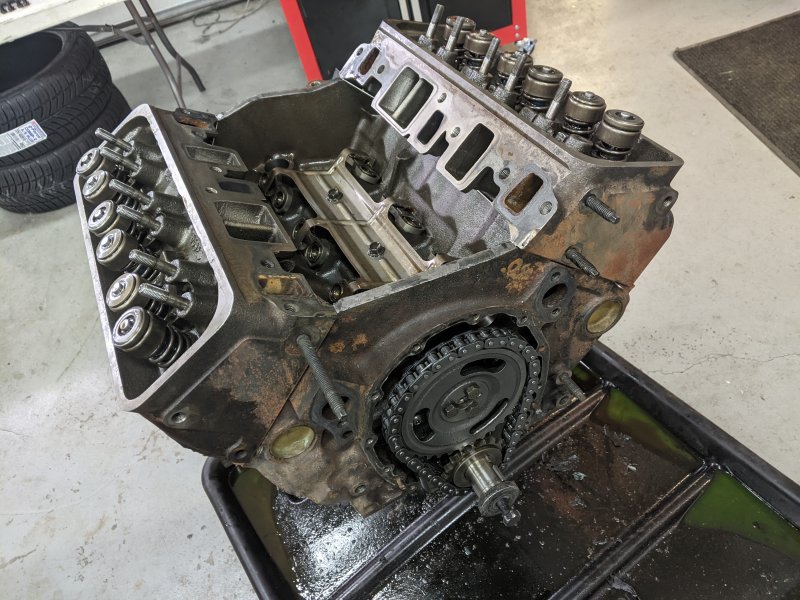

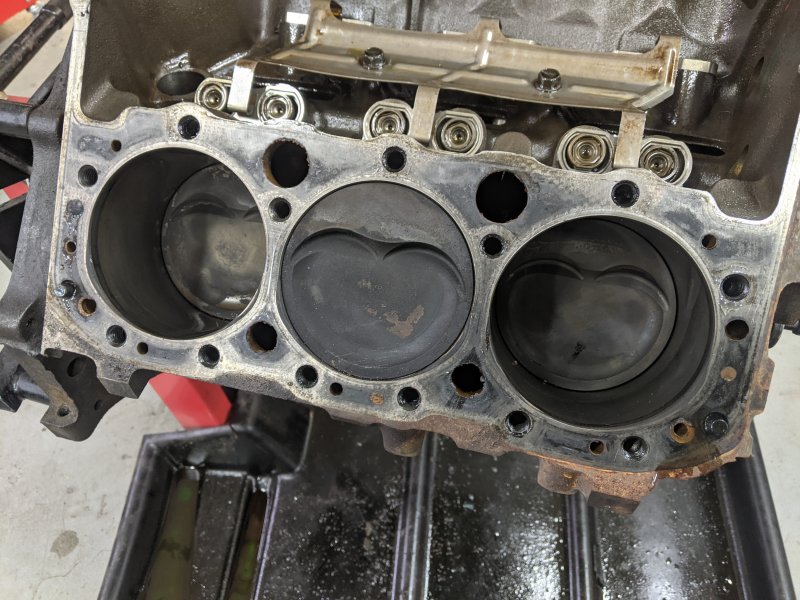

Engine teardown^^^

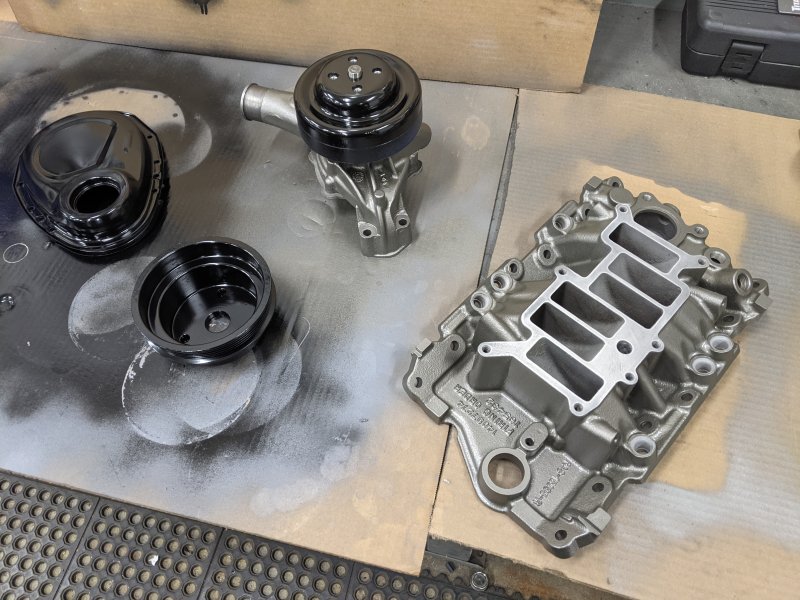

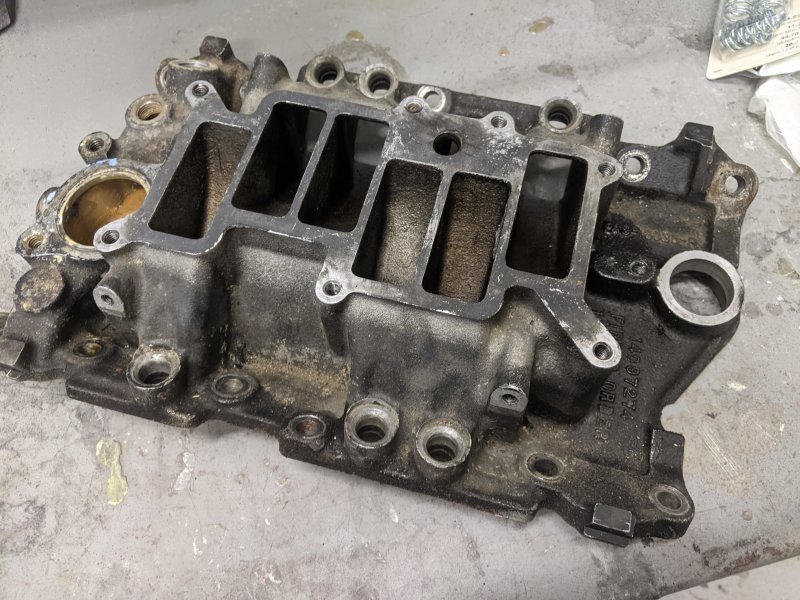

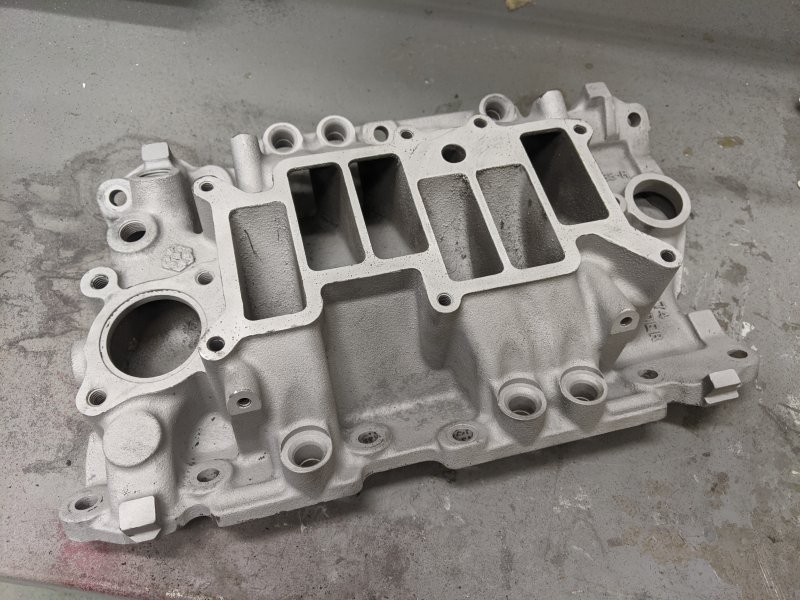

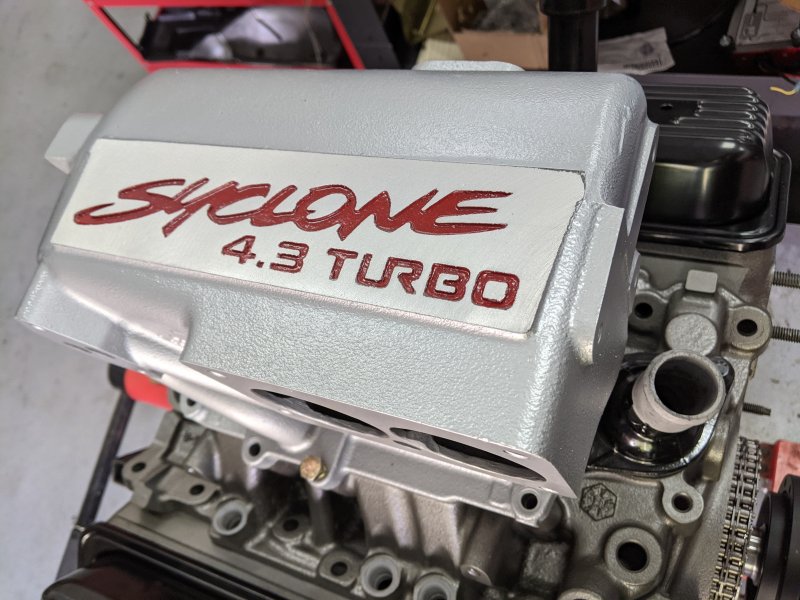

Intake manifold refresh^^^

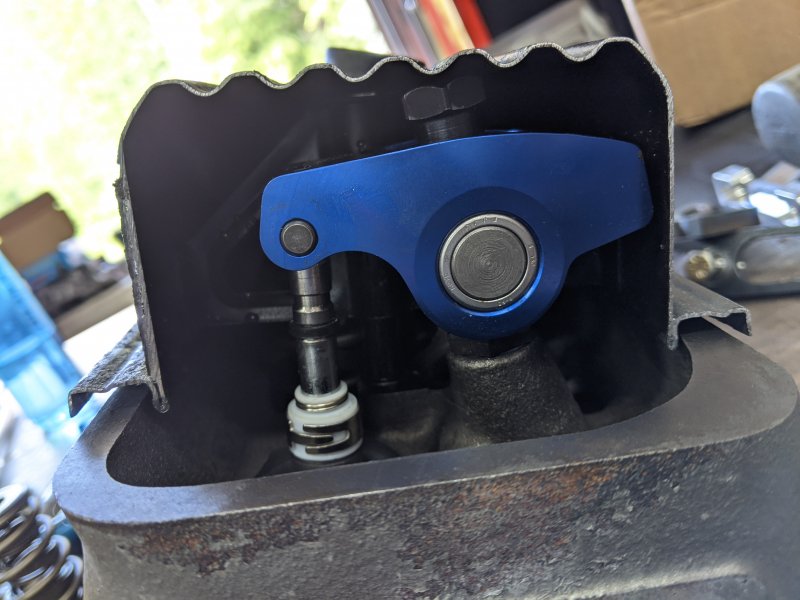

Valvetrain upgrades^^^

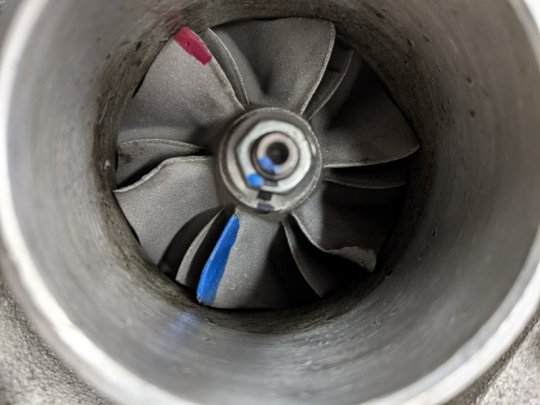

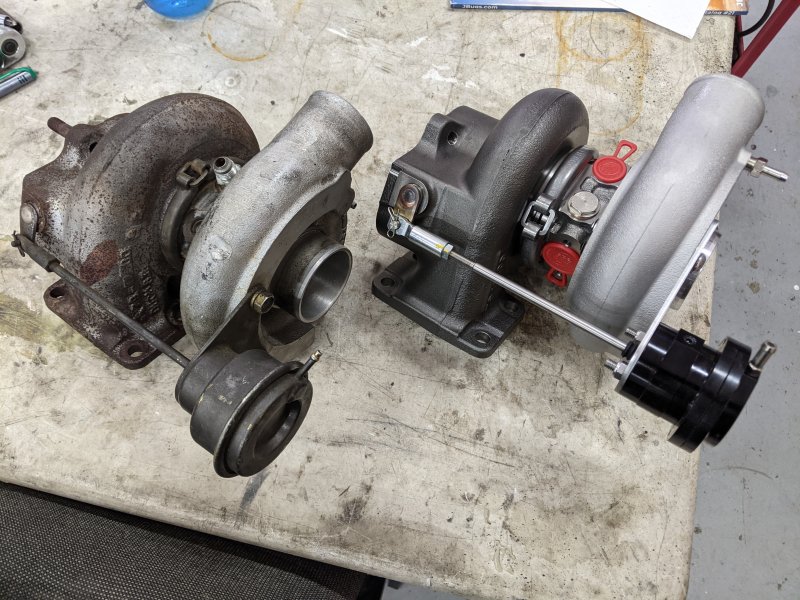

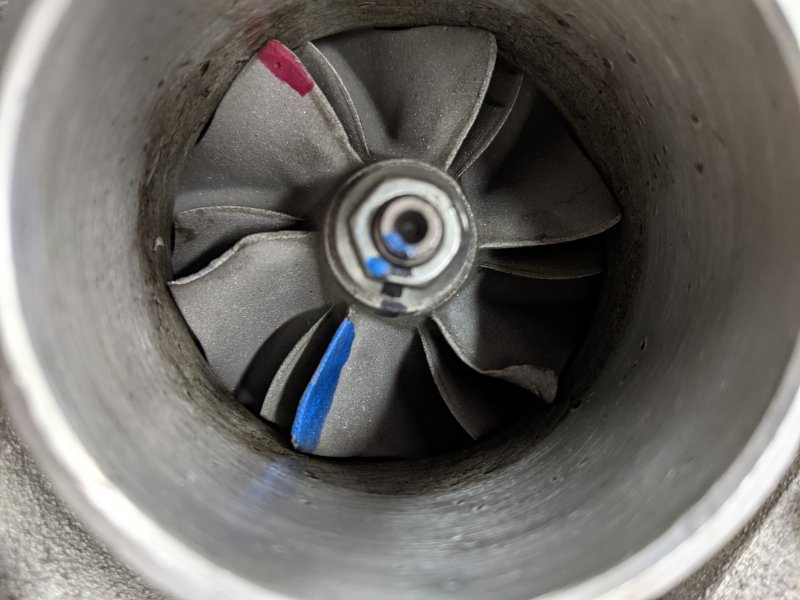

Busted turbo required a new upgraded one^^^

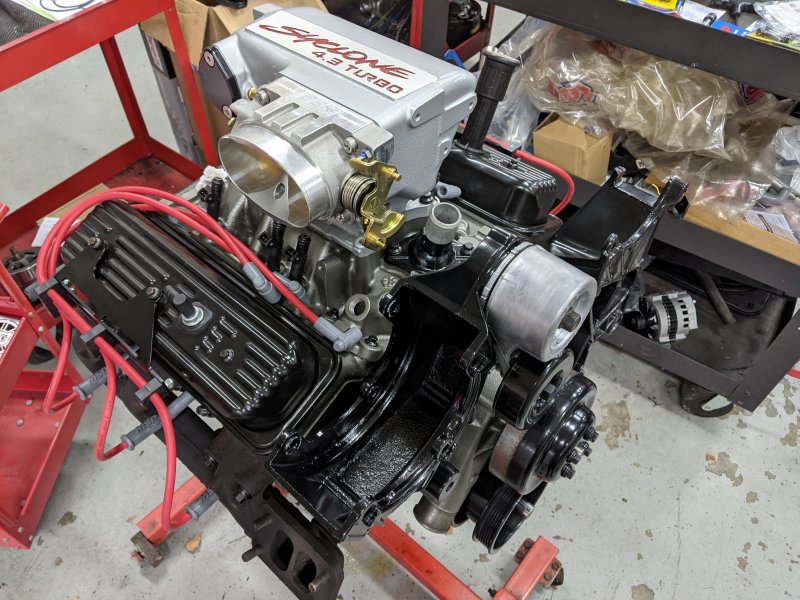

Ready to install^^^

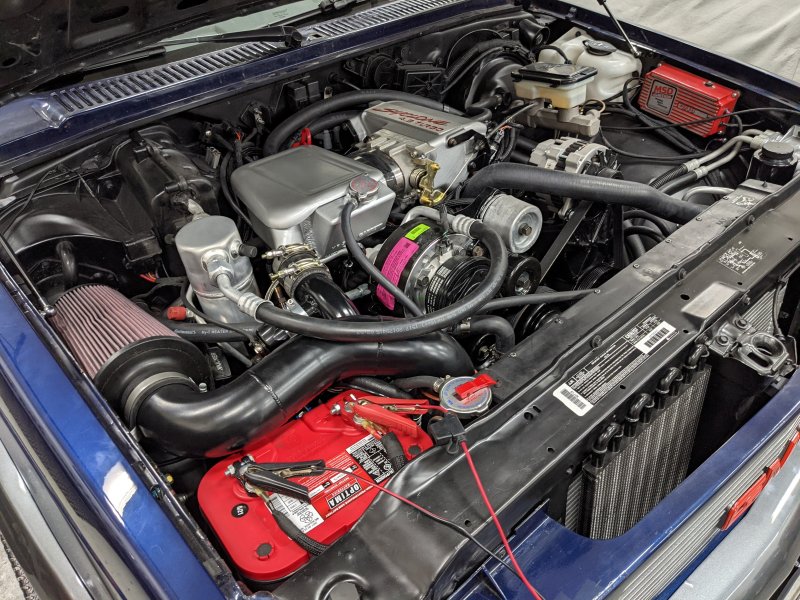

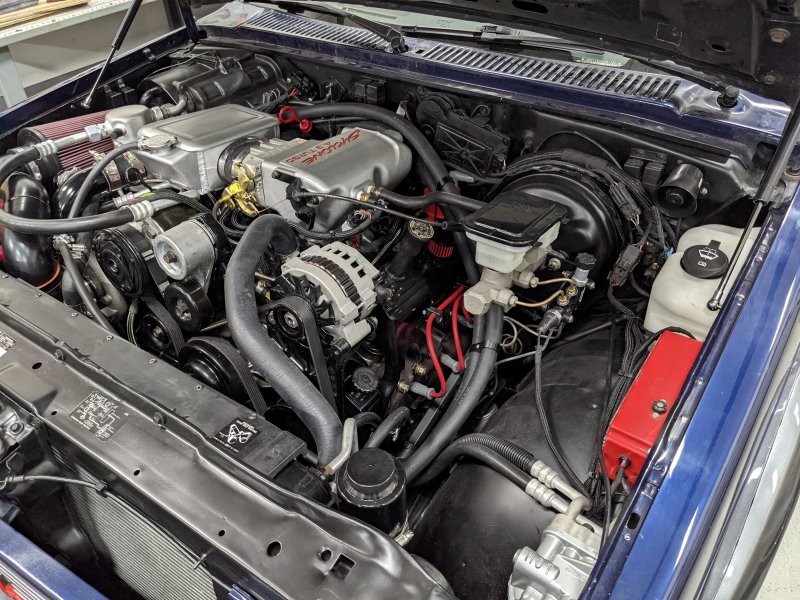

Freshly Painted Engine Bay^^^

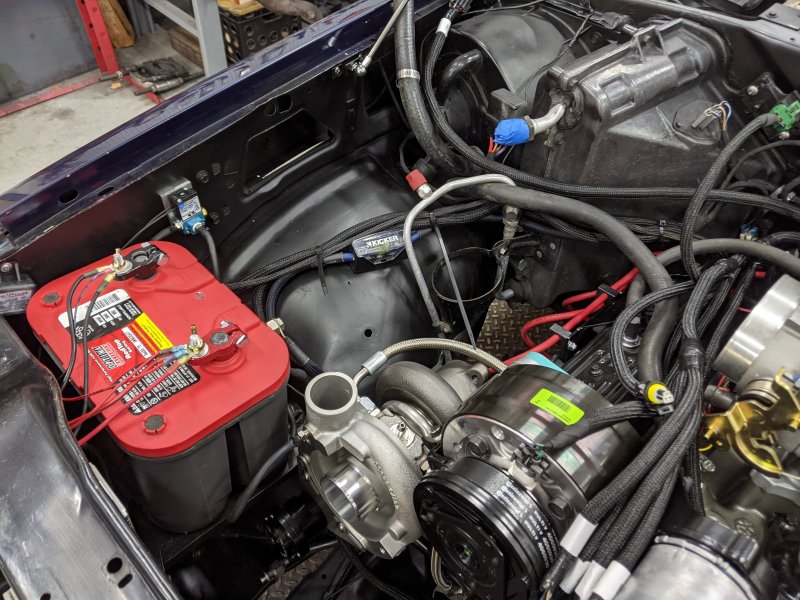

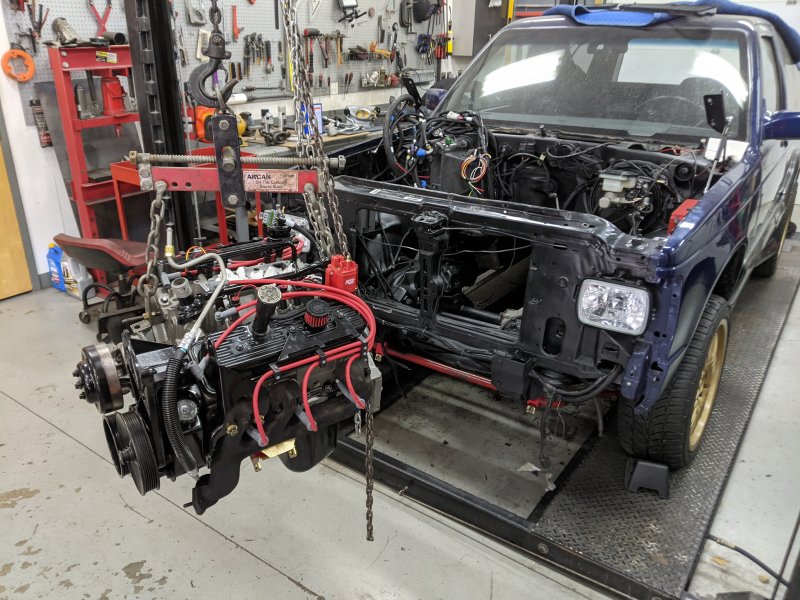

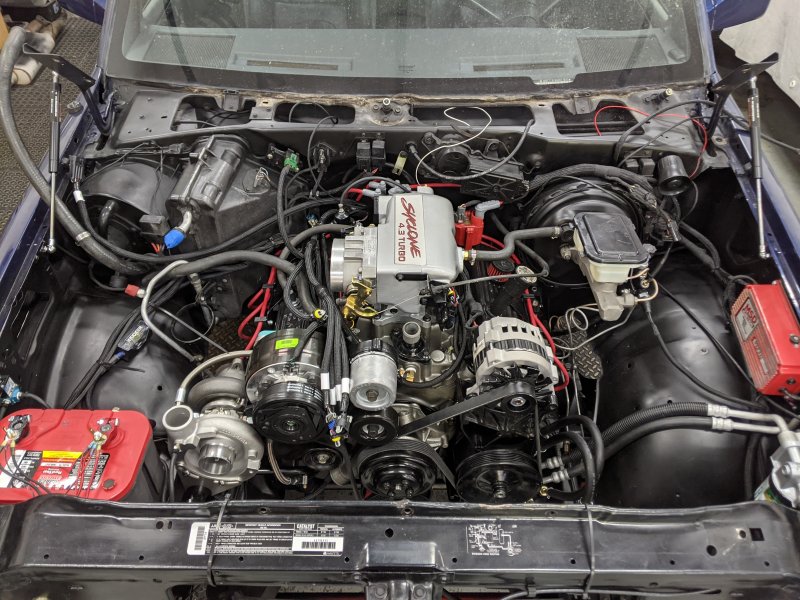

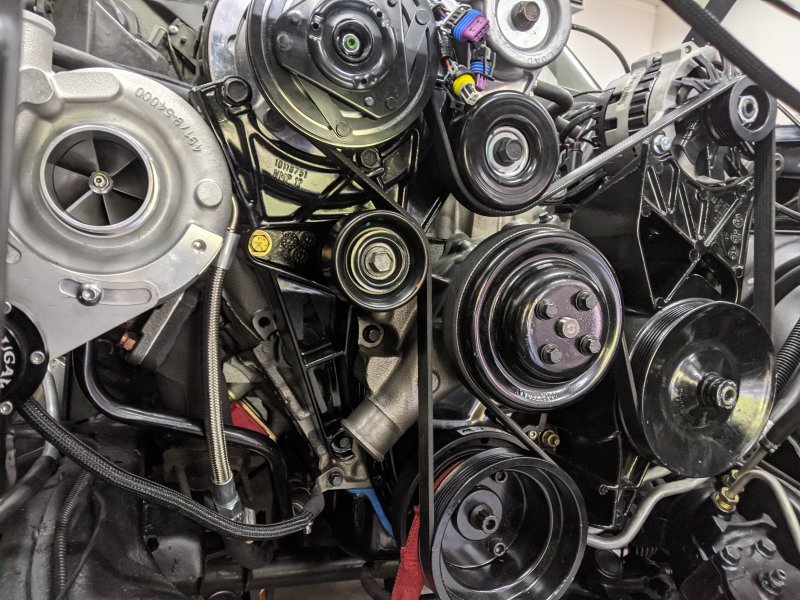

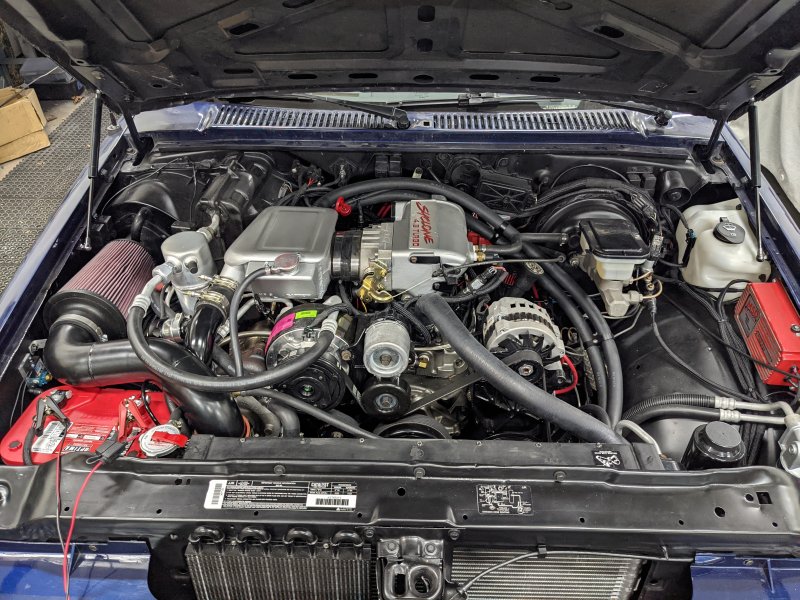

Engine Install^^^
Transmission:

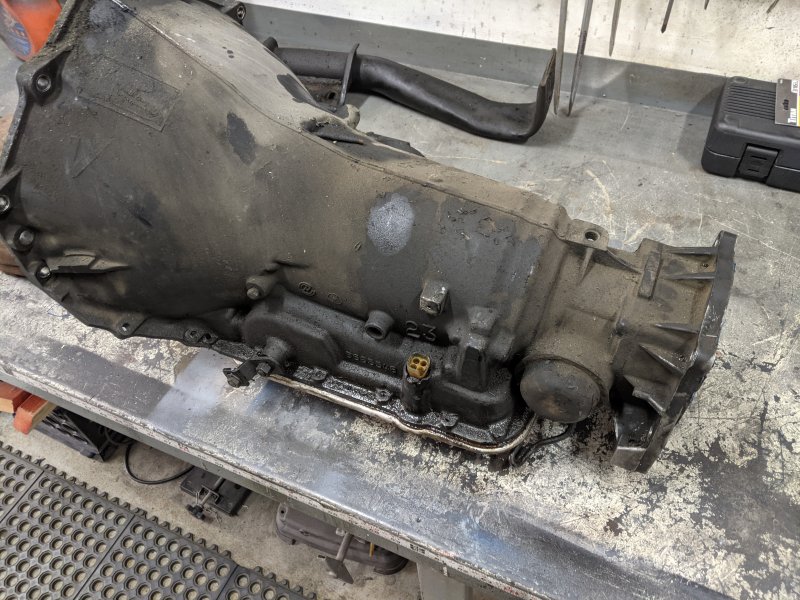

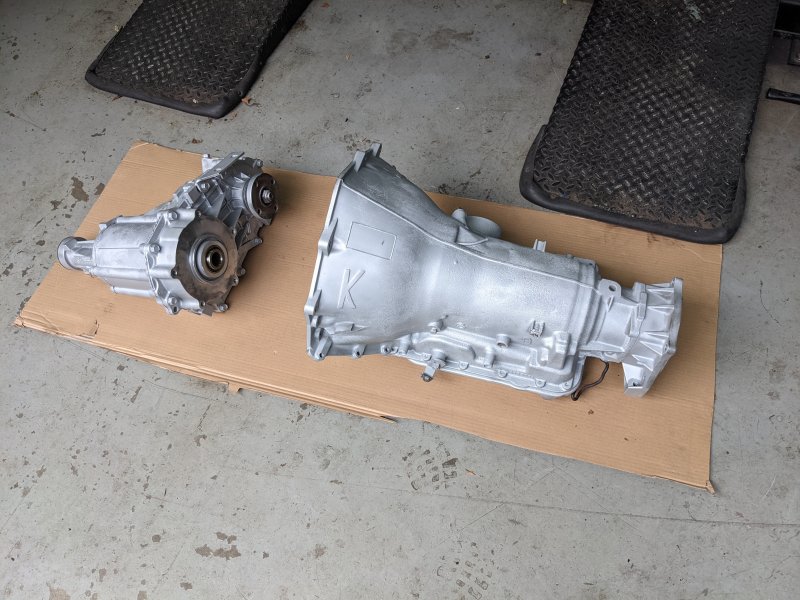

Swapped out 4L60 for 4L60E and had transfer case rebuilt, new B&M torque converter^^^

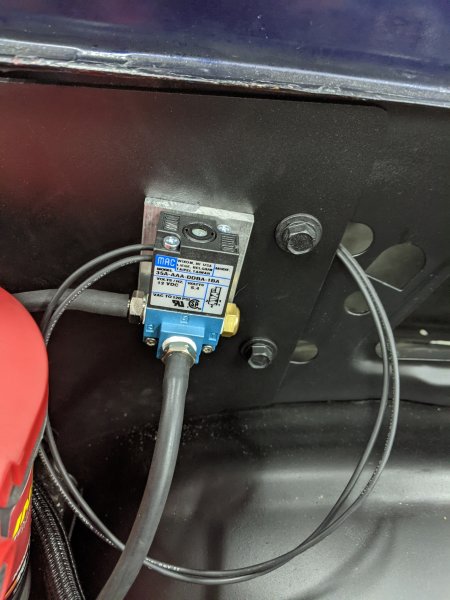

Boost Control:

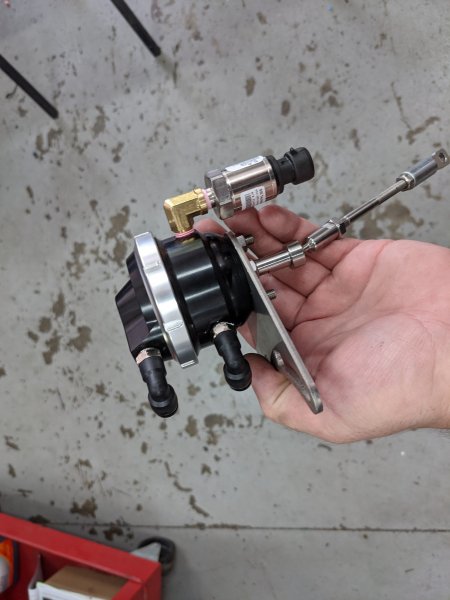

Internal wastegate with dome pressure sensor^^^
Body Repair

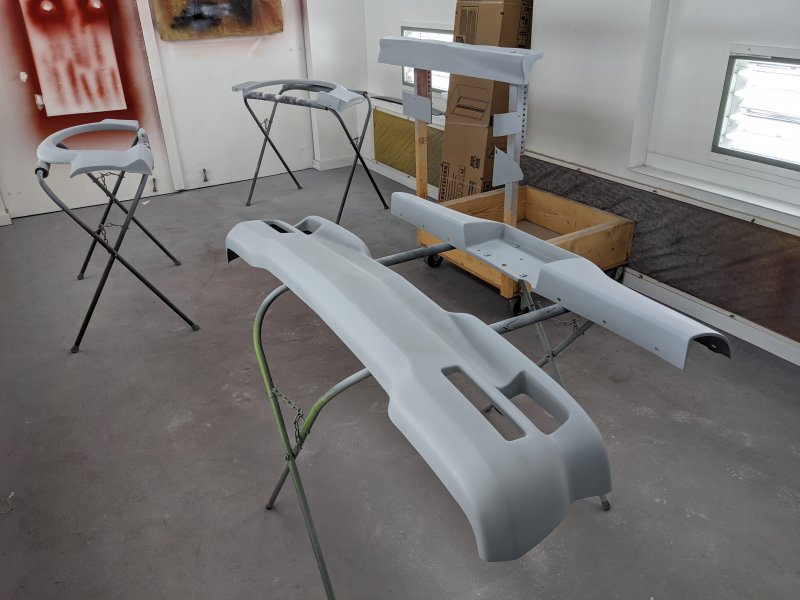

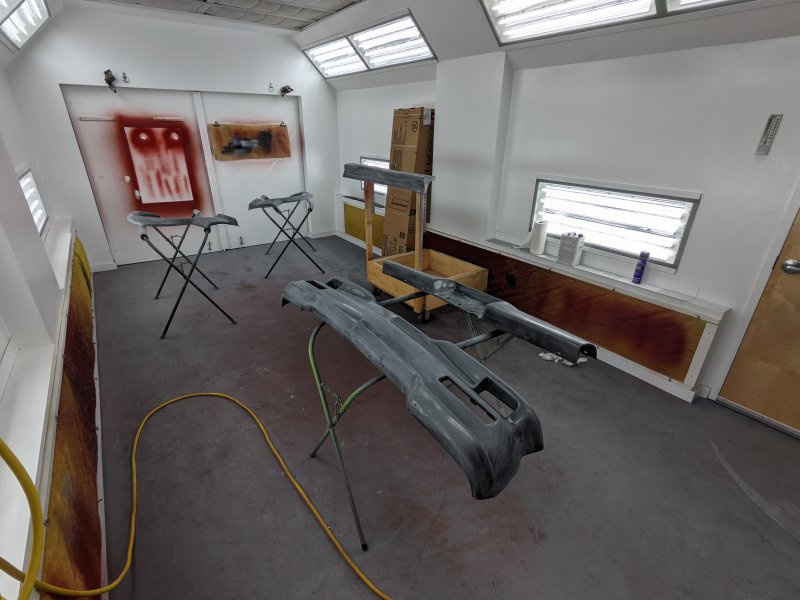

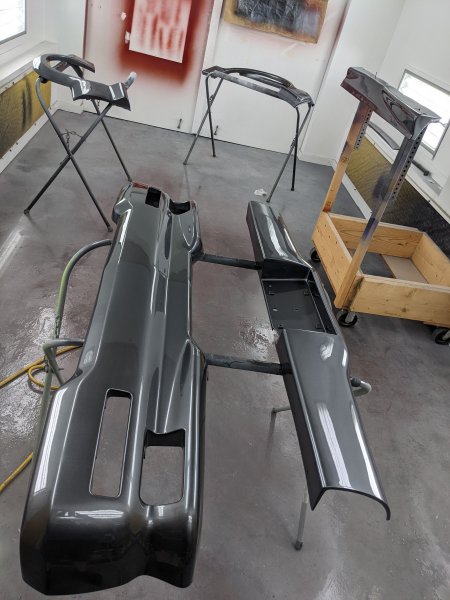

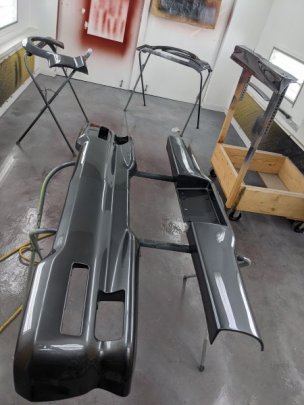

Fixed damaged body cladding and painted it^^^

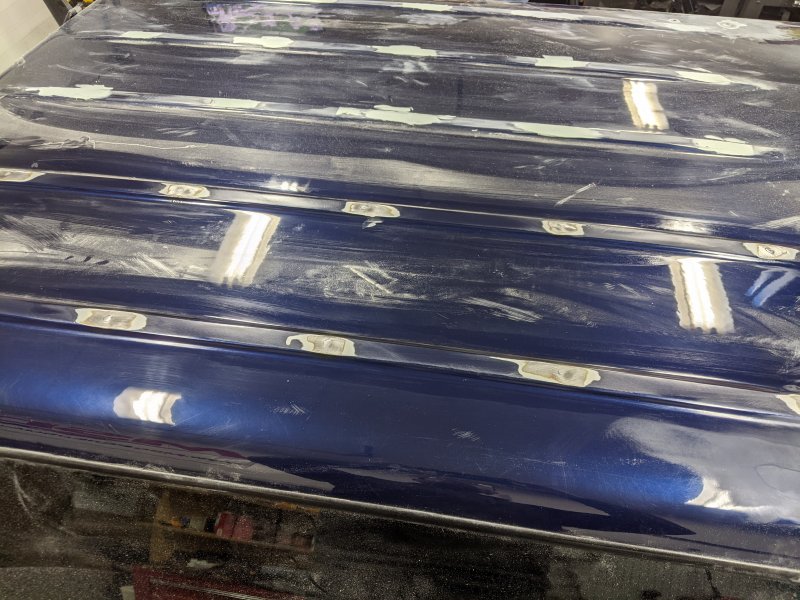

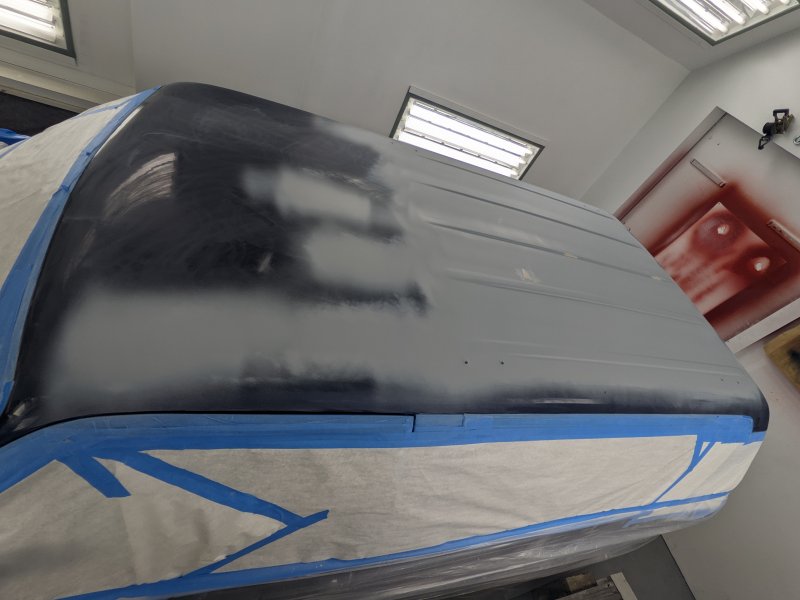

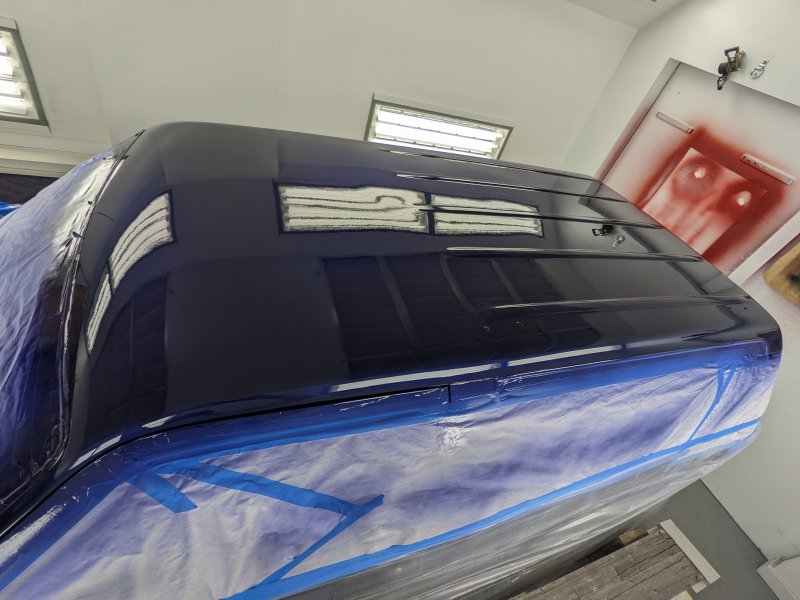

Painted the roof^^^

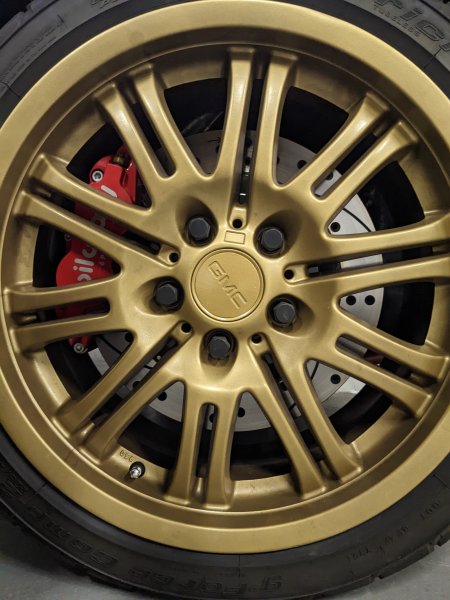

3D Printed Center Caps Finished

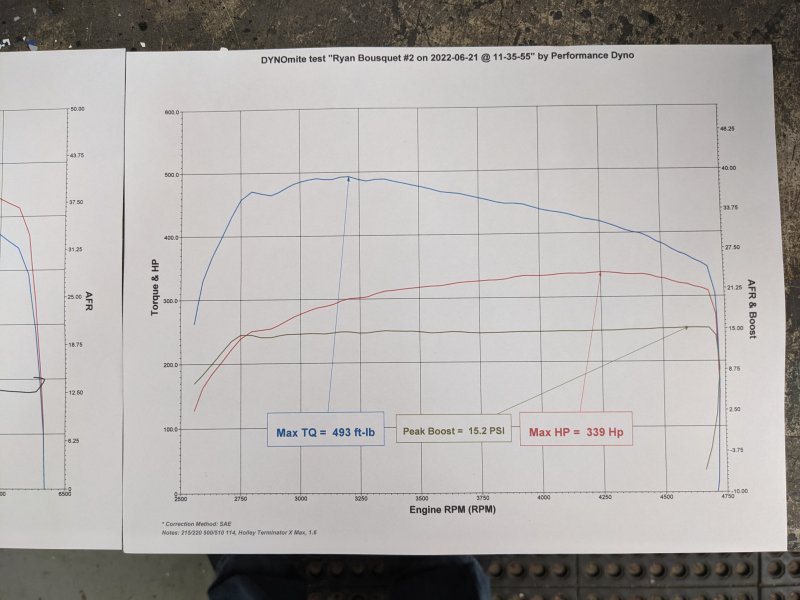

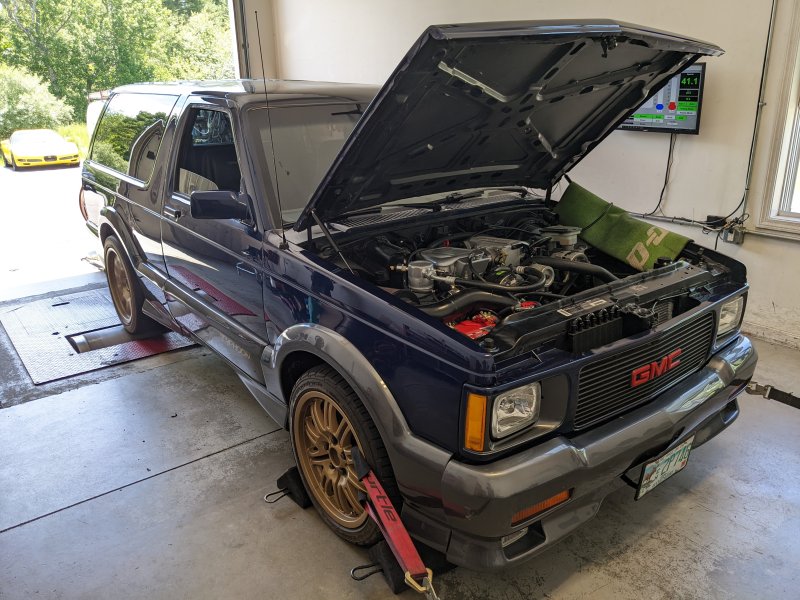

Dyno Tuning

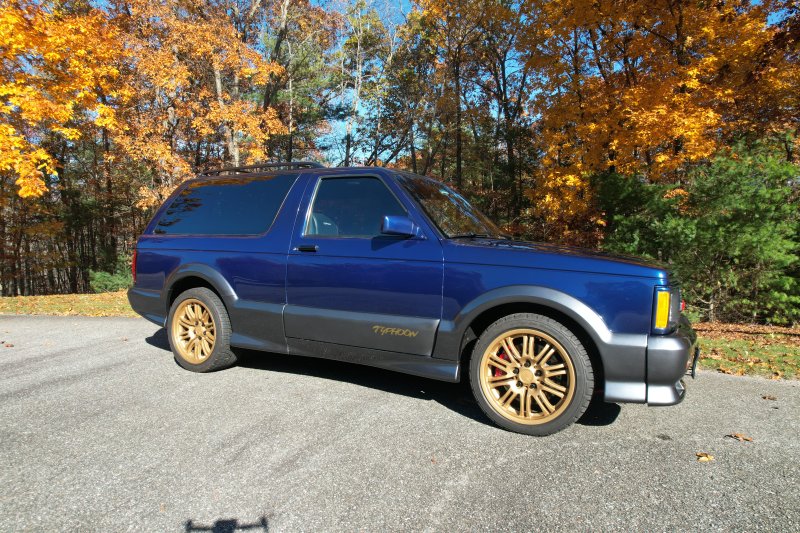

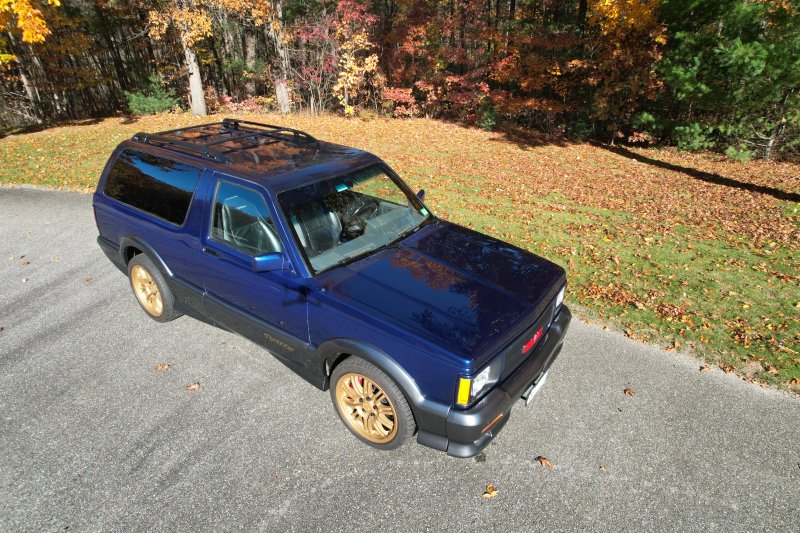

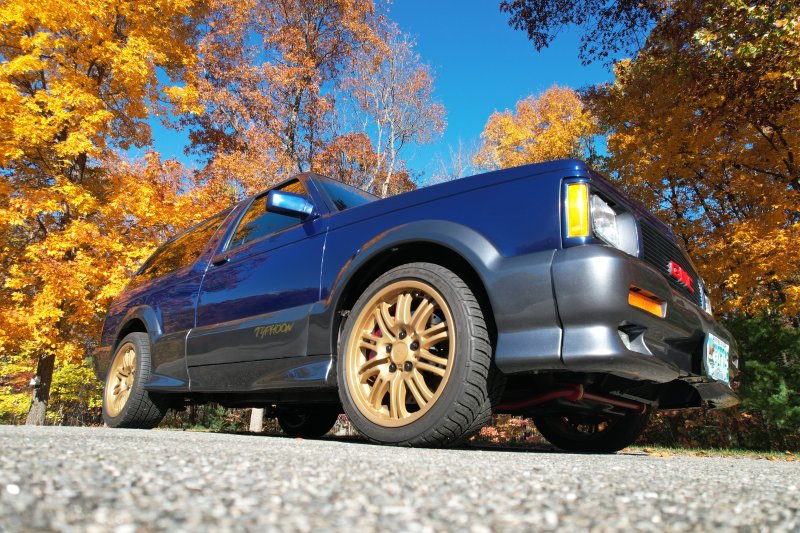

Finished Pictures
